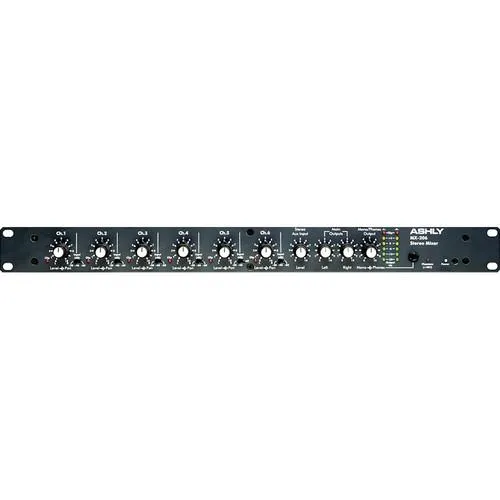

Ashly MX206 overview
The Ashly MX-206 Stereo Microphone Mixer is a 6-input microphone mixer designed to supplement larger consoles or for use as a stand alone mixer in sound-reinforcement and portable installations. The MX-206 features 6 studio grade, low-noise XLR 3-pin microphone preamps. Each input features a 20dB Pad switch that avoid signal overload due to excessive gain.
All of the MX-206's microphone preamps are capable of supplying 48V phantom power (globally switched) to condenser microphones. The output section features a balanced XLR mono, and L/R RCA stereo outputs. An Aux stereo input also features unbalanced L/R RCA stereo input connections and can be used to input signal from playback devices or additional mixers. The front panel features Level and Pan control as well as -20, -40 & -60dB gain switches for each input channel. The MX-206's compact, single-rack-space design allows easy storage and transport for mobile use.
- 6 Microphone Inputs
- The MX-206 6 channel microphone mixer features low noise XLR microphone preamps on all input channels.
- Stereo and Mono Output
- The output section features a single XLR mono output connection and L/R unbalanced RCA stereo outputs.
- Stereo AUX Input
- A L/R unbalanced stereo RCA Aux input can be used for playback devices such as CD and cassette players, as well as signals from other mixers.
- Pad Switches
- Every channel features a Pad switch that provides the attenuation needed to avoid overload from microphones that output high gain levels.
- Gain Switches
- The front panel features -20, -40 & -60dB input level gain switches.
- Pan Control
- All channels feature level and Pan control for complete control over signal placement within the stereo field.
- 48 Volt Phantom Power
- All input channels provide 48V phantom power for condenser microphones.
-
Ashly MX206 specs
Total # Of Inputs 6 - Balanced 3-pin XLR Mic/Line Inputs 6 - Balanced 3-pin XLR Microphone Inputs Stereo Line Inputs No In-Line Inputs/Returns not applicable AUX Sends No AUX Returns No Inserts No BUS (Group) Outputs Stereo output bus only 2 Trk Master I/O Master Output: L/R Balanced 1/4" TRS Phone Tape I/O: L/R RCA Phono ALT I/O Mono Output: Balanced 3-pin XLR Monitor Outputs Headphone Output: 1/4" TRS Phone EQ Section No Solo/Mute Individual channel Mute switches & Stereo Output Mute switch Channel Level Control Sealed Rotary Potentiometers (POTS) Trim/Gain Control same as Channel Level Phantom Power not applicable Metering VU Meters: Two 5-segment LED meters. 0 VU = 4dBu
Peak Indicators: Left and right peak clip indicatorsFrequency Response /- 0.2dB 20Hz - 20kHz Dynamic Range Not Specified by Manufacturer Signal-to-Noise Ratio (20Hz - 20kHz noise bandwidth):
-100dBu residual output noise, all level at minimum
-87dBu master out, master level and one input level at unity gainTotal Harmonic Distortion (THD) Less than 0.02% THD @ 20dBu, 20Hz - 20kHz Power Supply 120VAC nominal, 93VAC minimal, 50-60Hz, 12 watts (240VAC available) Dimensions 19 x 1.75 x 6.6" (482.60 x 44.45 x 167.64mm) (WxHxD) Weight 8 lbs (3.63 kg)
