BRIC5 Survey Tool

BRIC5 - Digital Survey Tool

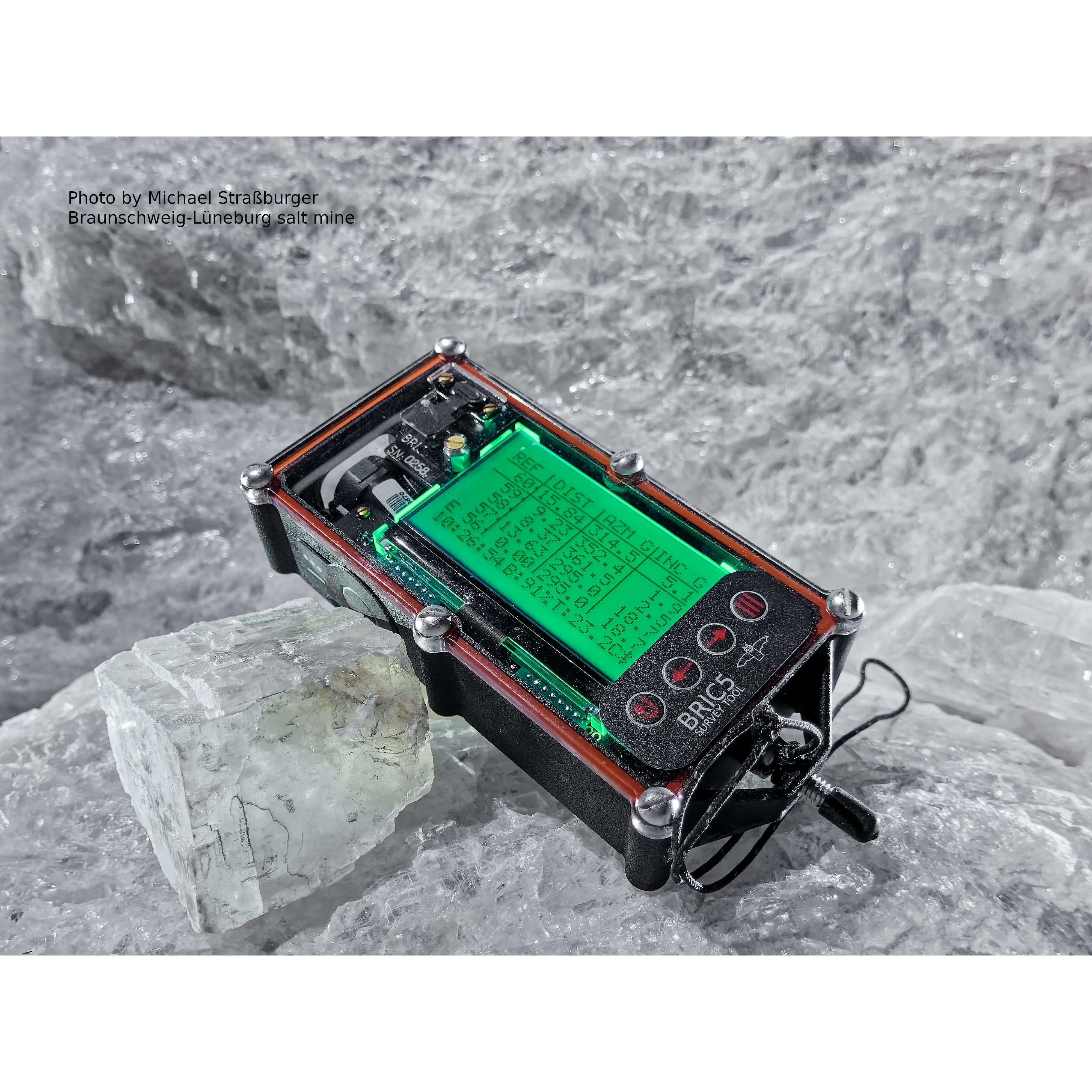

A high precision ruggedized survey tool designed for mapping in the harshest subterranean conditions. Accurately captures 3D vectors of azimuth, inclination, and distance. Uses Bluetooth to send measurements to mapping applications. Includes redundant sensors and advanced error detection for complete confidence in survey data.

Weight & Dimensions

• 300 grams (0.66 lbs)
• 8.1 x 3.8 x 17.5 cm (3.2 x 1.5 x 6.9 inches)

Resources

Specifications:

• High precision and accuracy

  • Azimuth:  <0.10° precision, <0.20° accuracy

  • Inclination:  <0.08° precision, <0.15° accuracy

  • Distance:  1 mm precision, 3mm accuracy

• Redundant accelerometers and magnetometers to detect calibration drift, malfunctions, and magnetic gradients that could affect measurement accuracy.

  • 2x Murata SCA3300-D01 MEMS industrial accelerometers

  • 2x PNI RM3100 magneto-inductive magnetometers

  • Advanced error-detection prevents bad measurements.

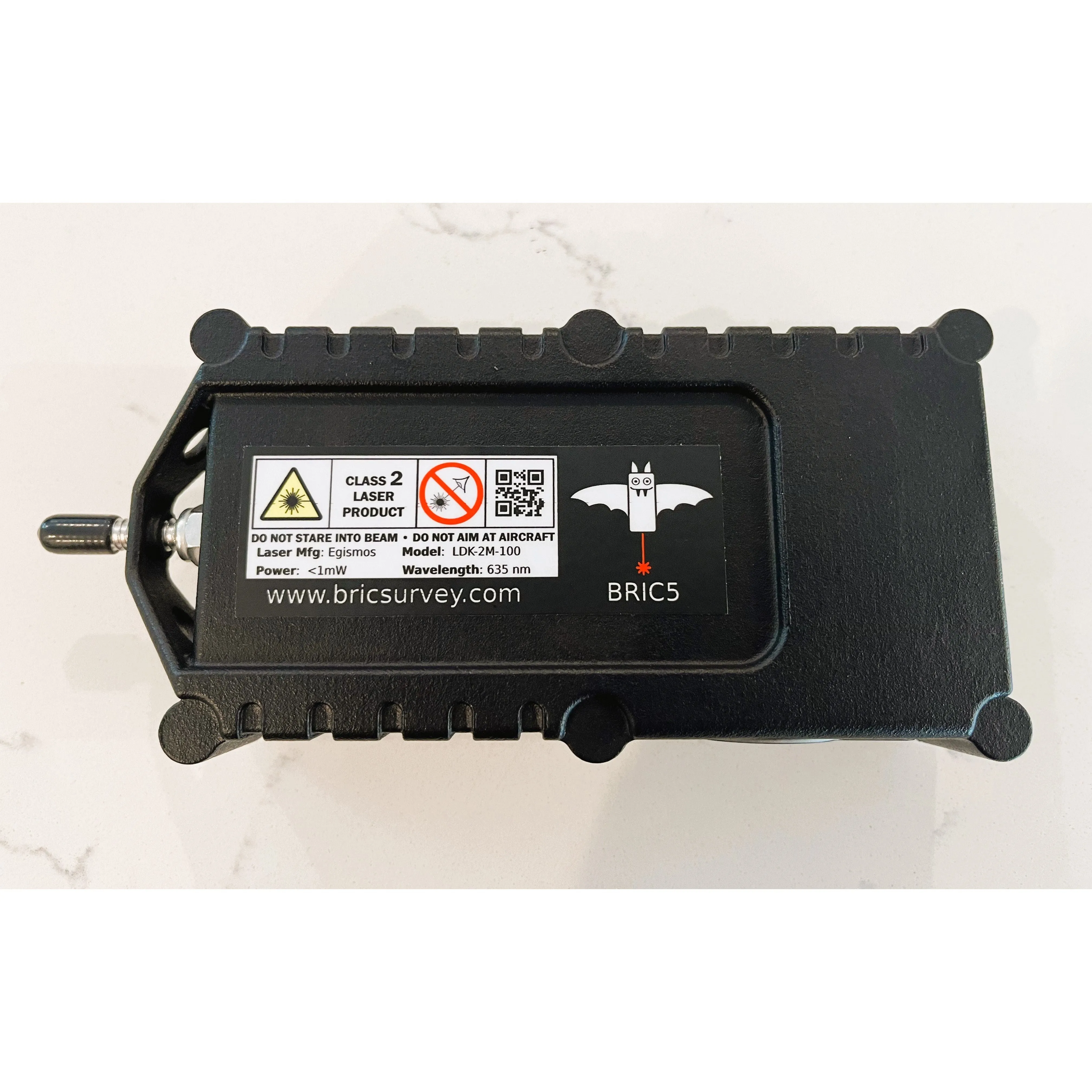

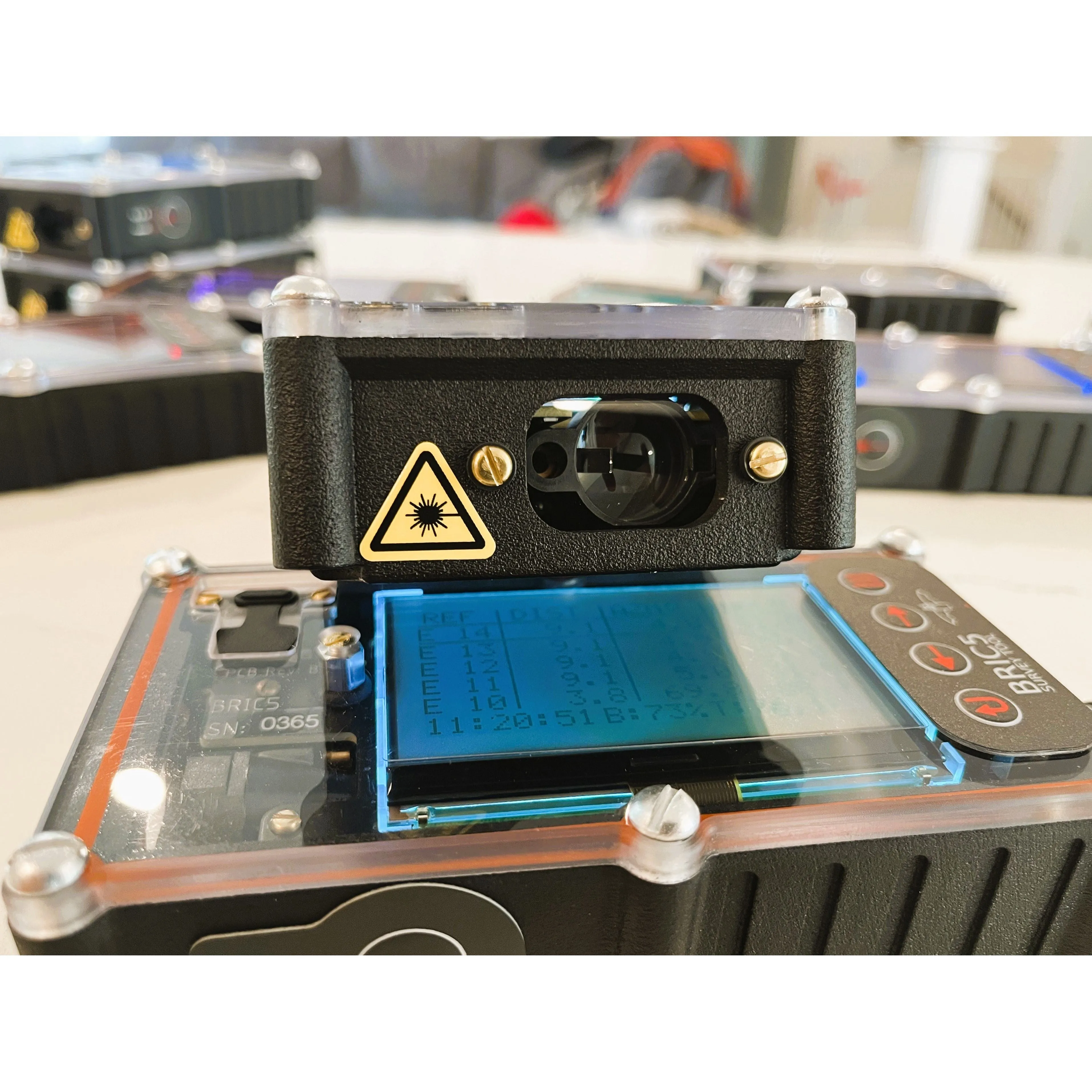

• Egismos LDK-M2 Laser Rangefinder, 100m (328 ft) range

• Waterproof and shockproof ruggedized construction.

  • IP-67 rating

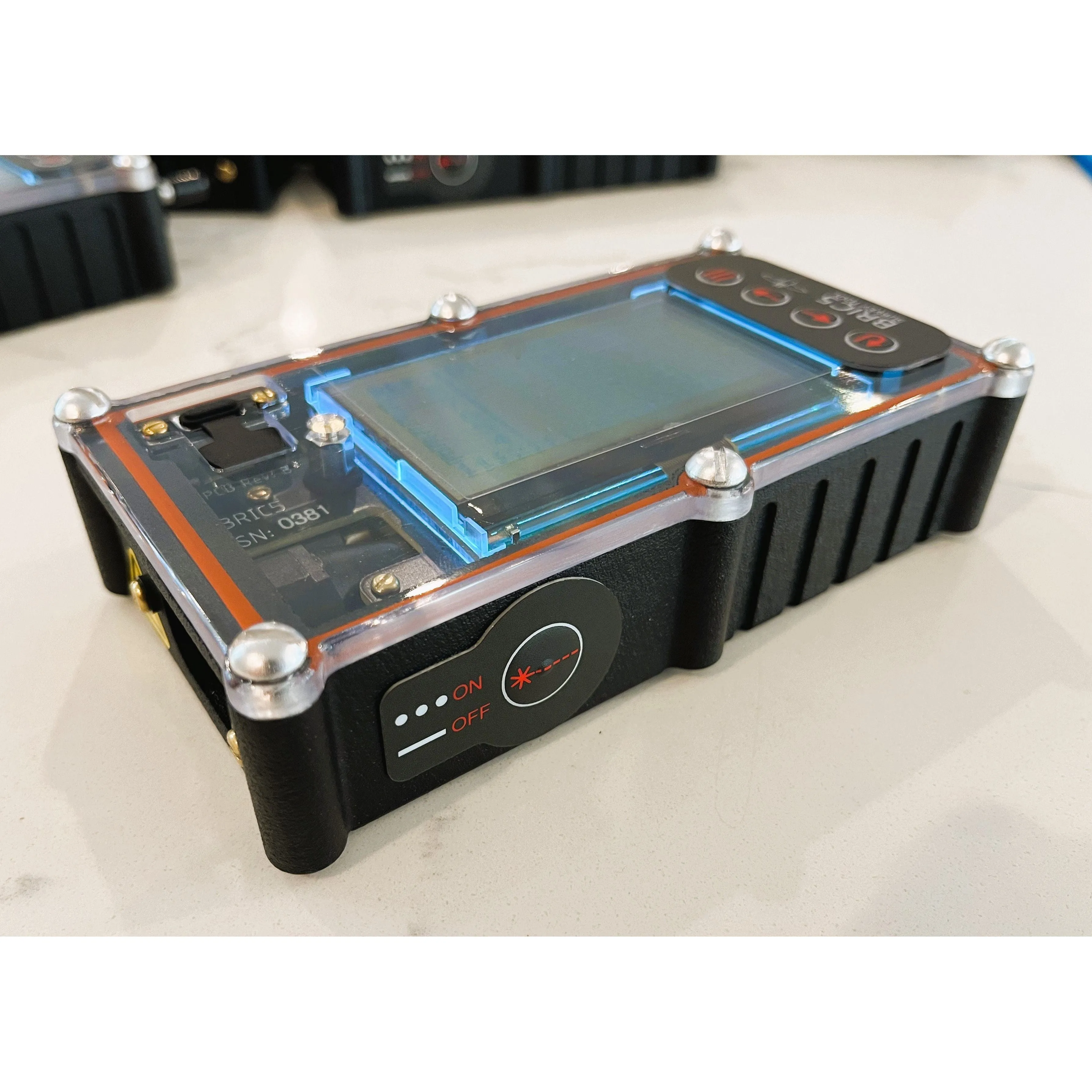

  • Membrane switches, impervious to mud and water

  • Rubber mounted sensor assembly.

  • Polycarbonate lid with screen protector on display

• Bluetooth LE for instrument control and measurement transfer

  • Compatible with TopoDroid, CaveSurvey, and soon SexyTopo

  • Note:  Requires Bluetooth Low Energy capable hardware on client, Bluetooth 4.0 or greater.

• Easy, quick, and robust integrated calibration on device; no external hardware required.

  • 15 minutes for full calibration.

  • 3 minutes for quick azimuth calibration

  • Calibration report auto-generation

• 1800 mAH lithium-polymer non-magnetic battery

  • USB micro charging

  • Estimated 100 hours of normal use (100 shots/hour)

• Intuitive user-friendly interface:

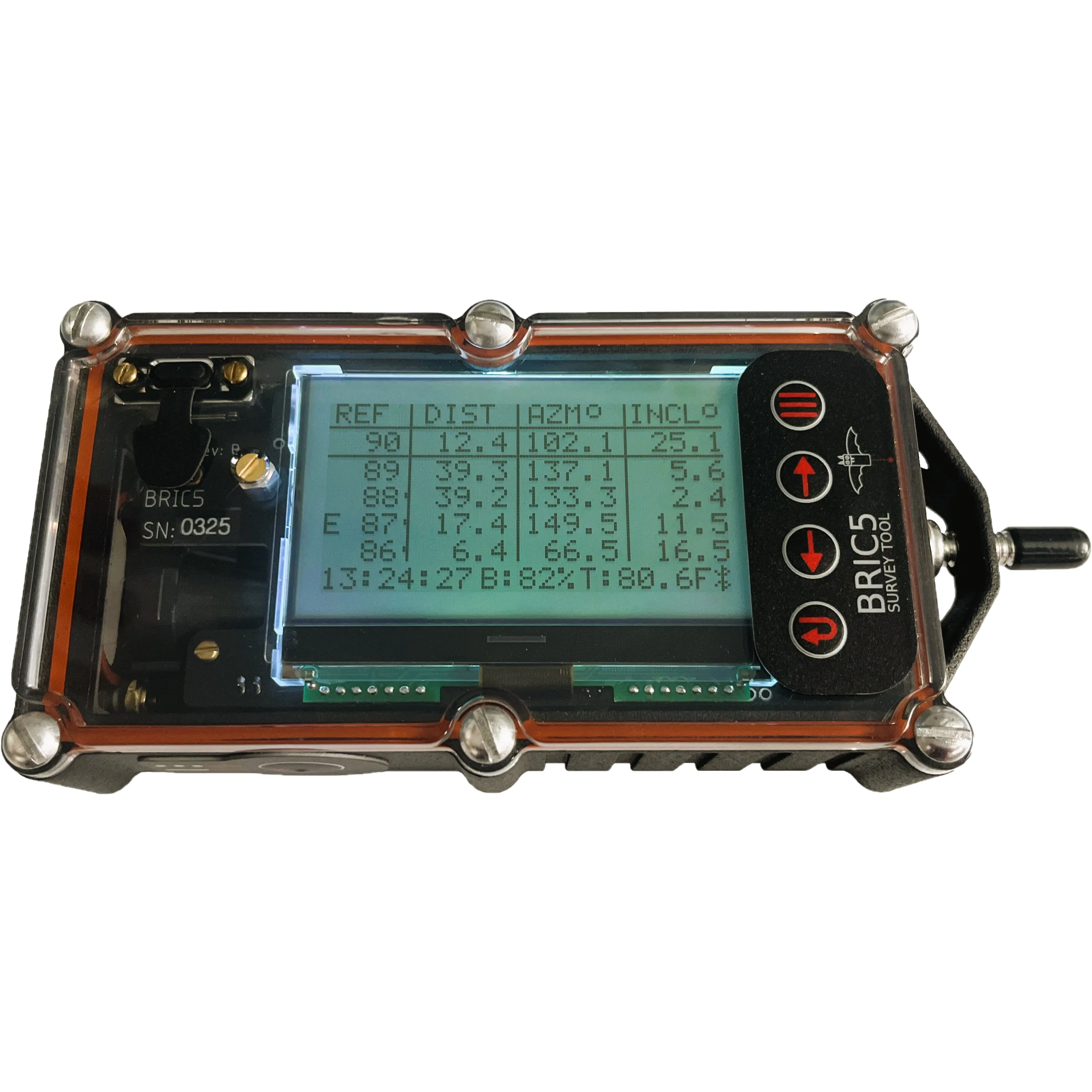

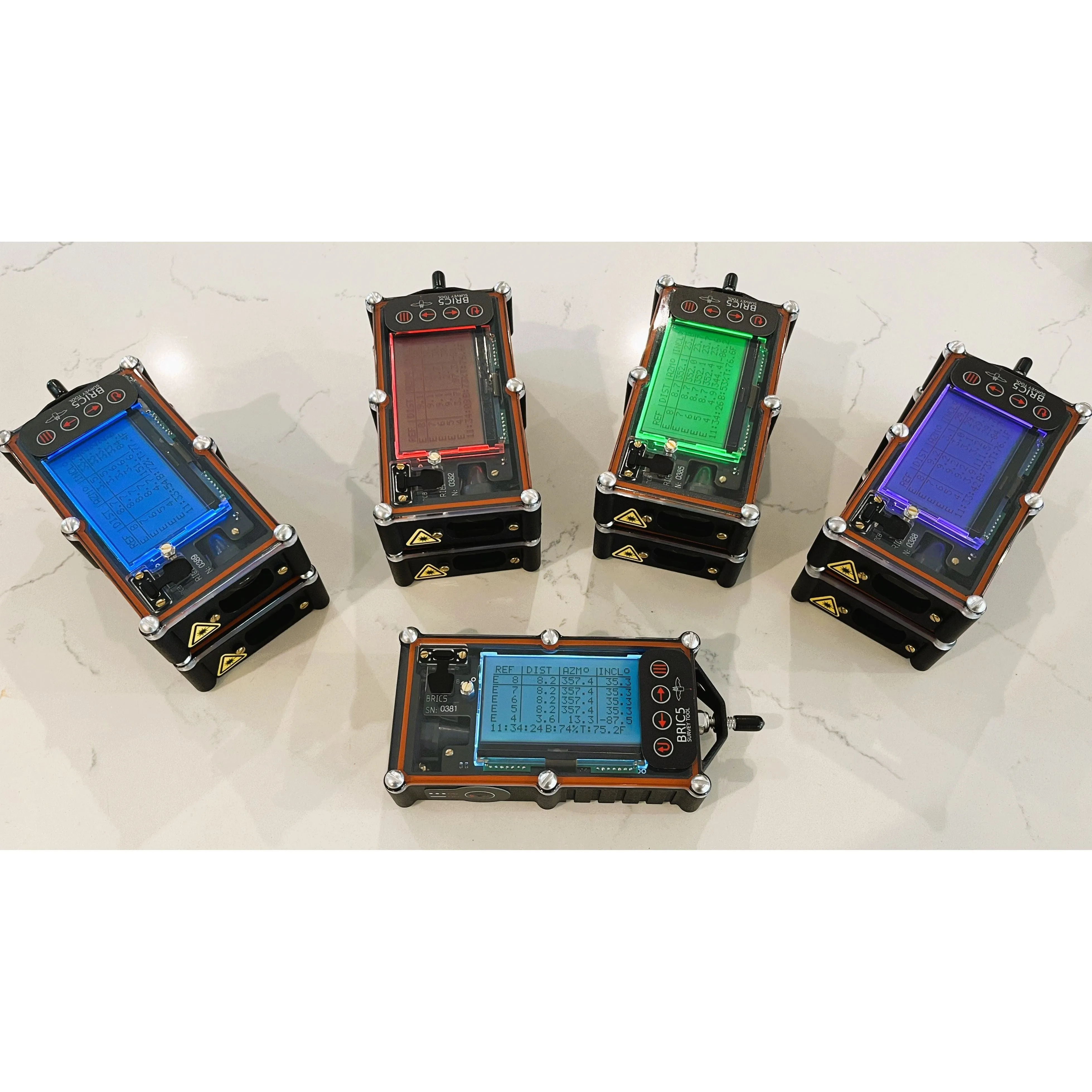

  • Large 128x64 backlit display.

  • Displays last 5 shots, battery level, temperature, time, and Bluetooth status. Can scroll through all measurements.

  • 1 main button for taking measurements

  • 4 soft-keys for settings, calibration, and other functions

  • Piezo-buzzer for audio feedback.

• 8GB industrial SD card for measurement storage and calibration reports, accessible through USB.
