Product Description
-

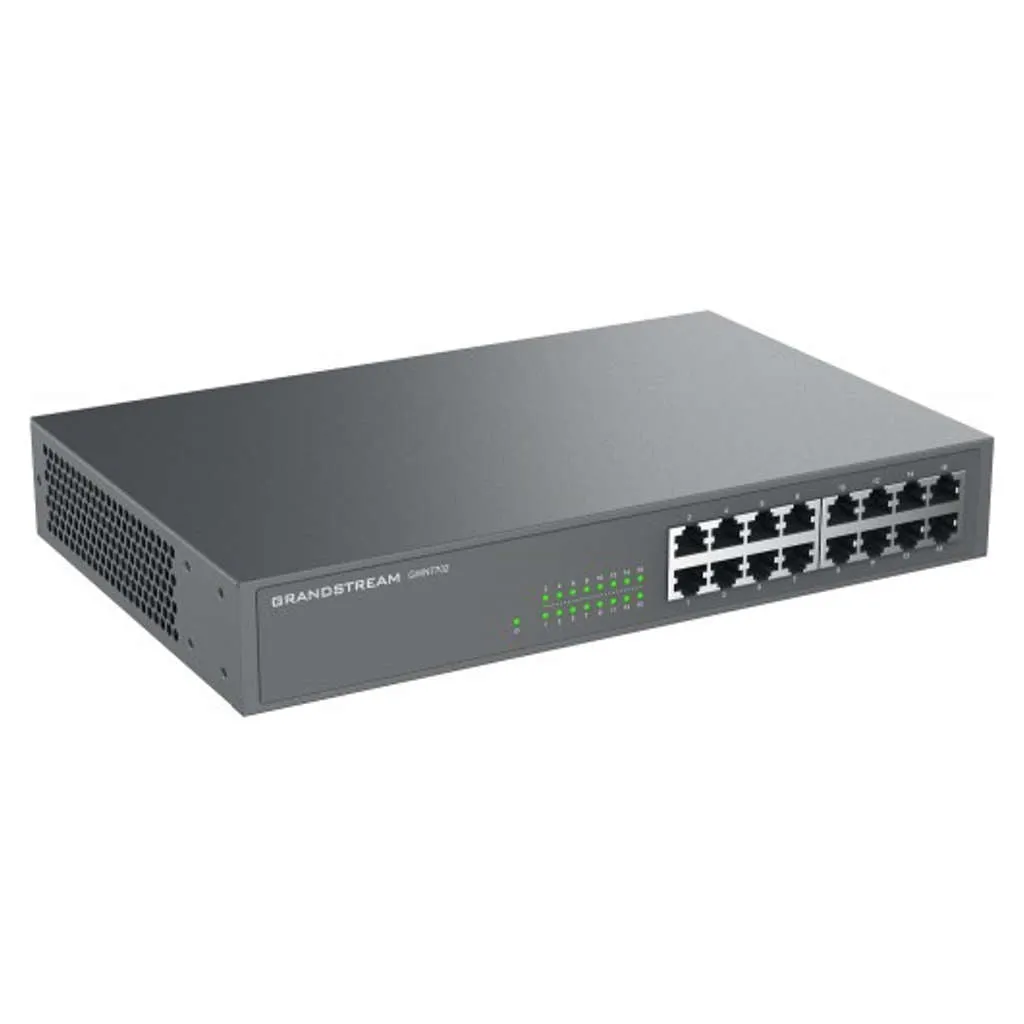

The Grandstream GWN7702 Unmanaged Network Switch is an unmanaged network switch that provides a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small-to-medium-sized businesses
-

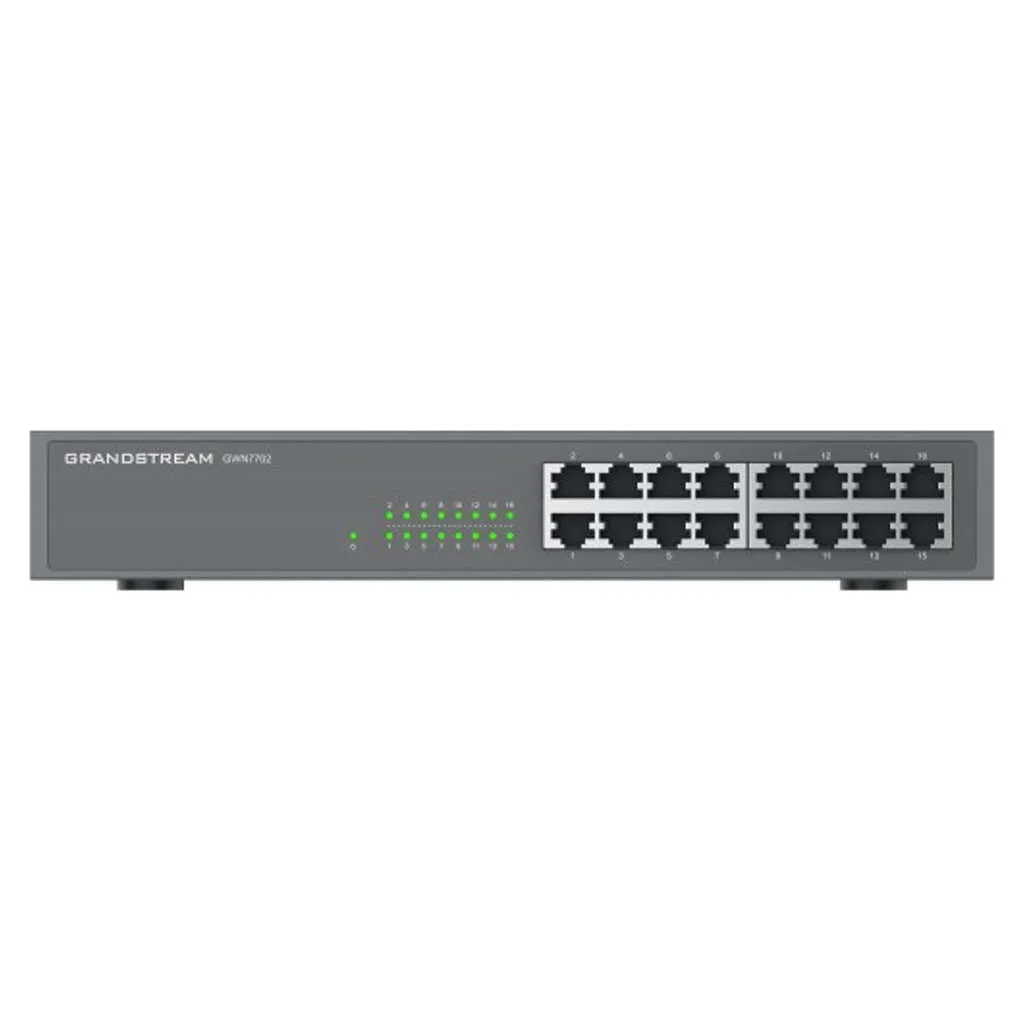

16 Gigabit Ethernet ports
-
Part of the GWN7702 series of switches, the GWN7702 is a plug-and-play network switch that makes it quick and easy to deploy or expand any office communications and networking deployment
-
It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables
-
Each port supports auto-negotiation to allow the GWN7702 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance
Product Specification
|
Brand |
Grandstream |
|
Product Type |
Network Switch |
|
Product Model |
GWN7702 |
|
Gigabit Ports |
16 |
|
Enclosure |
Metal |
|
Mounting |
Desktop/ Rack-Mount |
|
Network Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
|
Port Feature |
16/24×
10/100/1000Mbps RJ45 Ports |
|
Network Media |
1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
|
LED Indicators |
Per
port: Link/Activity Green |
|
Mac Address Table |
8K |
|
Switching Capacity |
32Gbps |
|
Jumbo Frame |
10KB |
|
Advanced Features |
Mac
Address Auto-Learning And Auto-Aging |
|
Power Adapter |
Internal
100-240V AC, |
|
Maximum Power Consumption By Base System |
8W@220V/50Hz |
|
Environmental |
Operating
Temperature: 0 to 40 °C (32 to 104 °F) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) - L x W x H |
36.6 x 21.1 x 5.3 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1.83 kg |
|
Generic Type |
Switches |
|
Manufacturer Details |
Grand Stream Connecting The World 28, HAL 3rd stage, Indira Nagar, Bangalore - 560075 Email:[email protected] |
|
Packer Details |
Grand Stream Connecting The World 28, HAL 3rd stage, Indira Nagar, Bangalore - 560075 Email:[email protected] |
|
Country Of Origin |
India |
