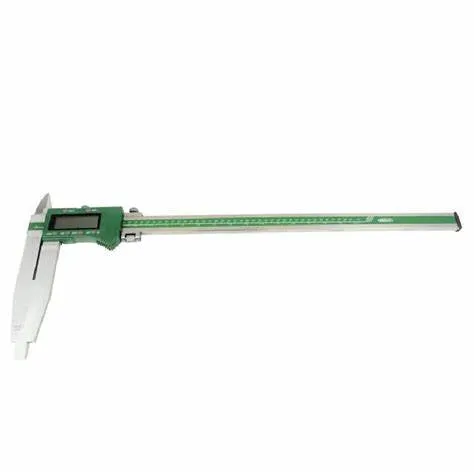

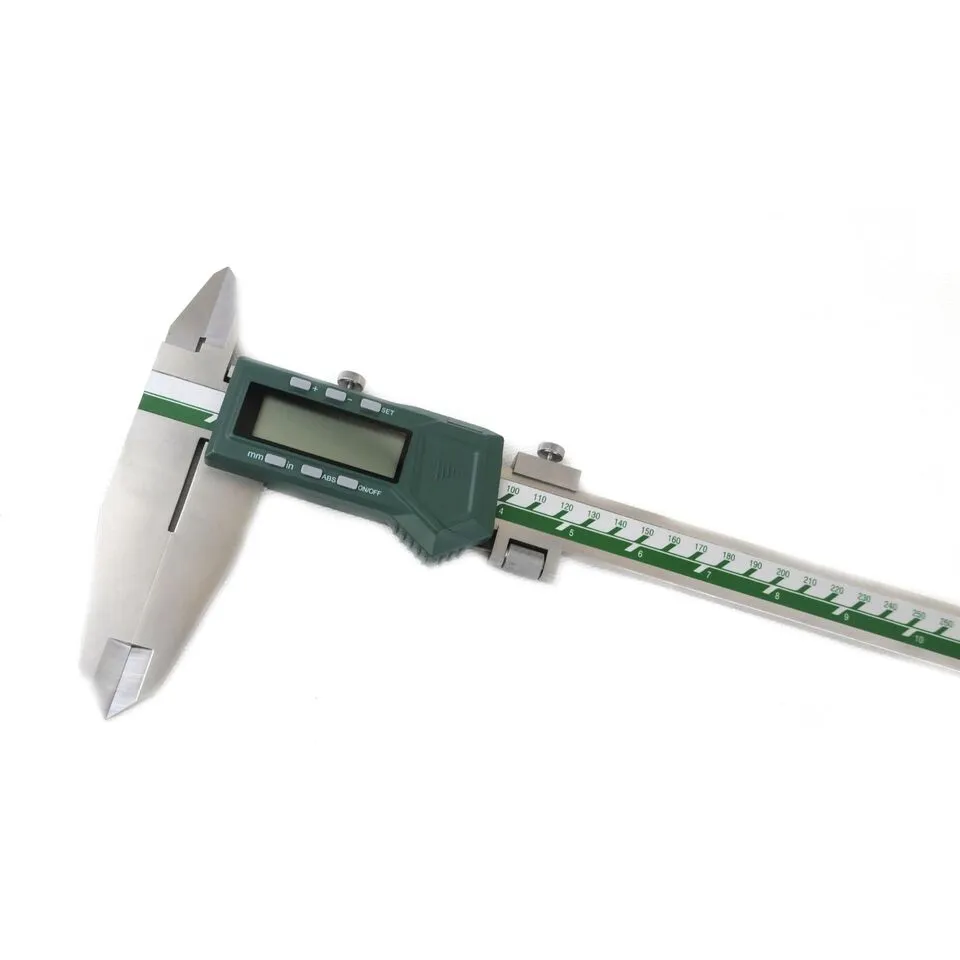

The Insize 1136-1002 Digital Vernier Caliper is a high-precision, long-range measuring tool designed to handle large components and structures. With a measuring range of 0-1000 mm (0-40 inches) and an upper jaw for specialized measurements, this caliper is ideal for manufacturing, engineering, and quality control tasks. Its data output capability ensures seamless data collection and integration into digital systems.

Key Features:

• Extended Measuring Range: 0-1000 mm (0-40 inches) for large-scale measurements.
• Upper Jaw Design: Enables additional measuring options for specific applications.
• High Resolution: 0.01 mm / 0.0005 inches for precision readings.
• User-Friendly Functions:
  • Zero Reset Button for quick recalibration.
  • On/Off Button to manage power.
  • MM/INCH Conversion for seamless switching between metric and imperial units.
• Automatic Power On/Off: Powers on when in use and turns off when idle to extend battery life.
• Data Output Capability: Supports optional data cables for easy data transfer and integration with digital measurement systems.
• Stainless Steel Construction: Durable and corrosion-resistant for long-term use in industrial environments.
• Battery-Powered: Operates on a CR2032 battery (included).
• Standards Compliance: Meets DIN862 standards for precision and reliability.

Specifications:

• Measuring Range: 0-1000 mm (0-40 inches)
• Resolution: 0.01 mm / 0.0005 inches
• Material: Stainless steel with upper jaw for additional measurement capabilities
• Data Output: Supports optional data cables for seamless digital integration
• Battery Type: CR2032 (included)
• Compliance: Meets DIN862 standards

What’s Included:

• Insize 1136-1002 Digital Vernier Caliper
• CR2032 Battery (pre-installed)
• Instruction Manual
