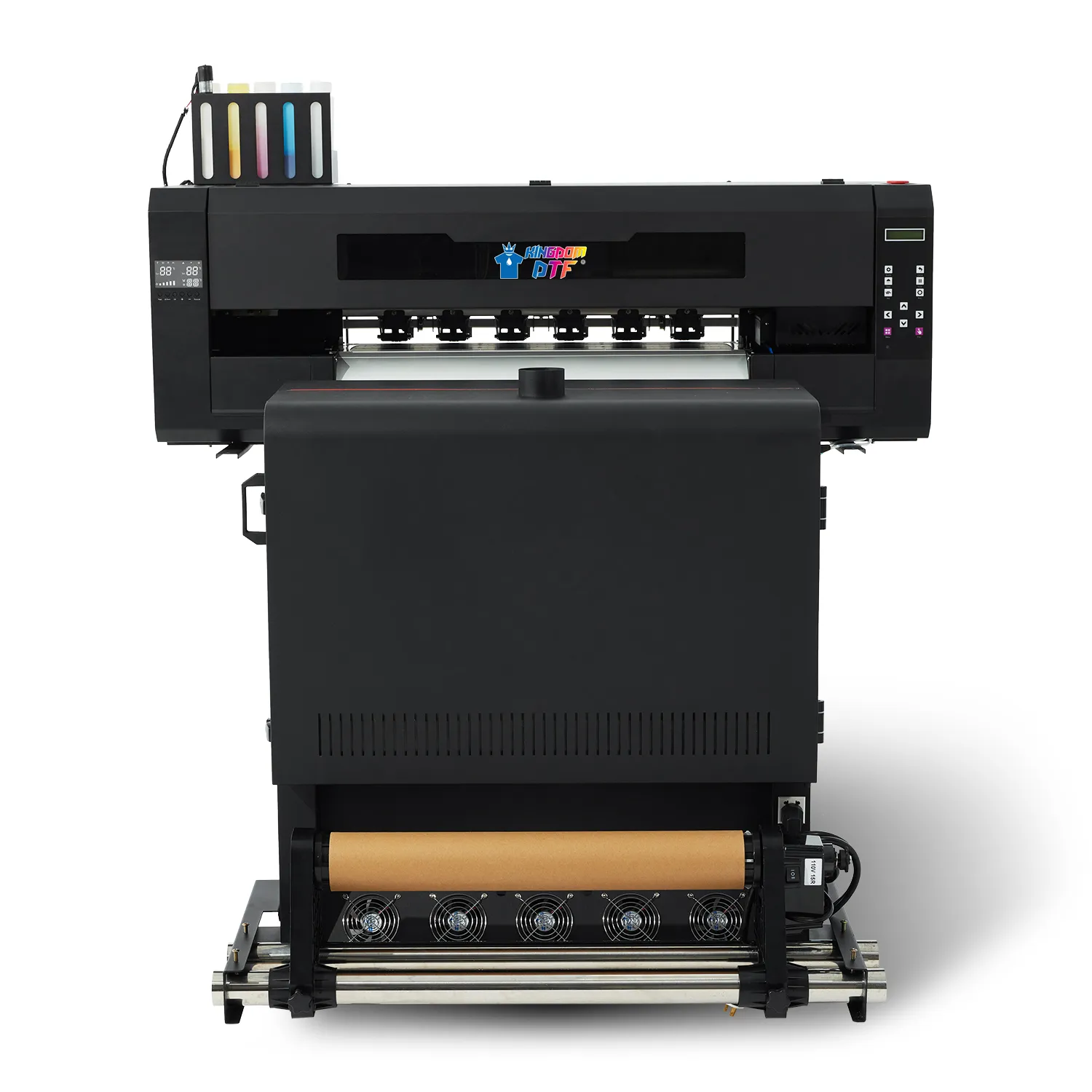

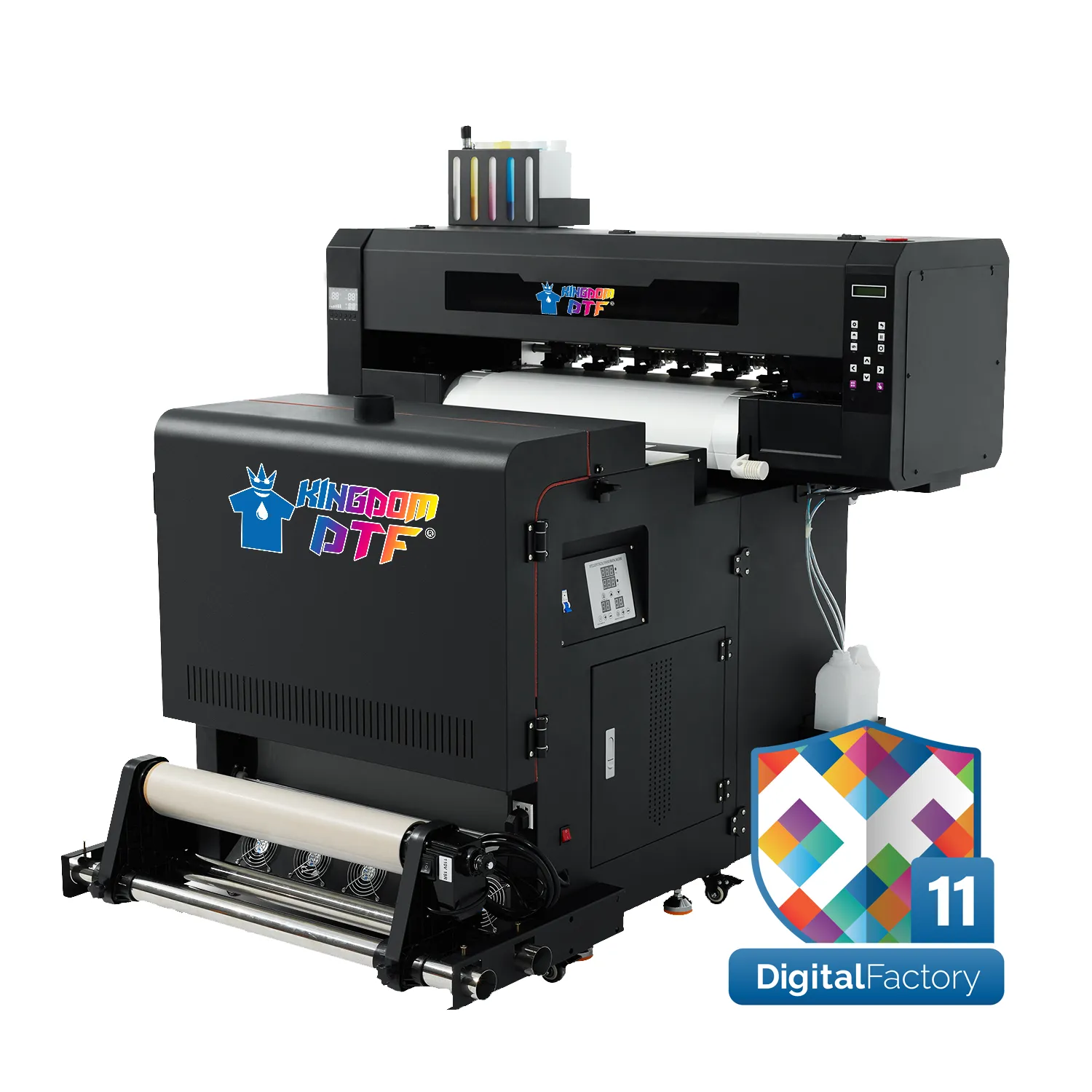

Knight A1™ DTF Printer 24” inch Dual Head i3200 AIO System - All In One Direct To Film Printer

The Knight A1™ DTF Printer 24” Inch Dual Head i3200 AIO (All In One) system offers users a speed-optimized, space-saving that can fit in 5 feet x 5 feet square space, 24" roll capacity (A1 size), and is one of the most cost-effective options of its kind with advanced technologies. Its i3200 dual head system expedites printing, providing one printhead for White and another for CMYK to generate vivid, long-lasting prints. This printer makes a great upgrade to production and save space.

Knight A1™ enables users to produce vivid and resilient prints on various materials, such as cotton, polyesters, blends, spandex, leather, and more, using our , , and . Compared to White Toner and DTG, DTF Printing provides a greater array of benefits and is the most widely employed textile printing technology on the market these days.

FEATURES:

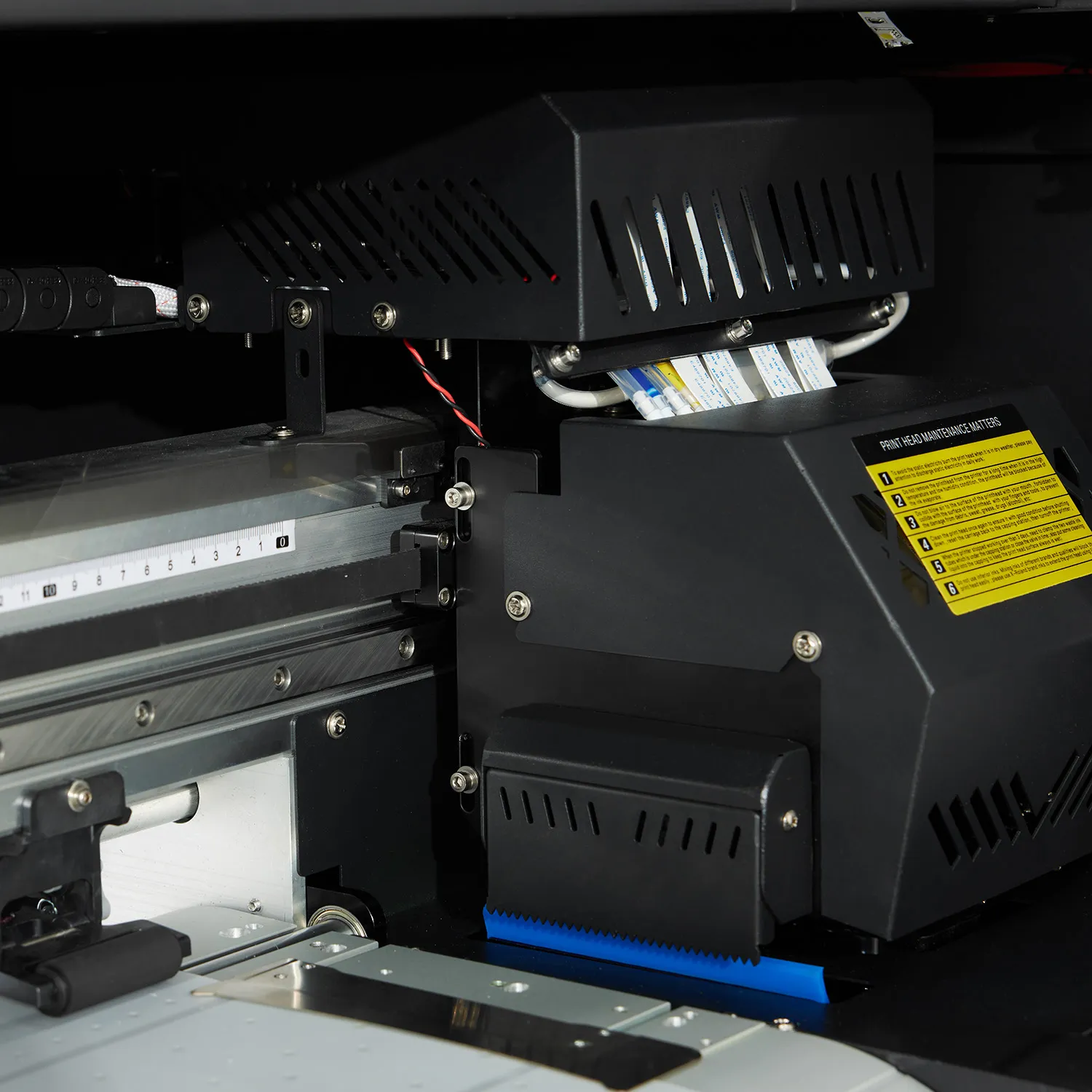

● Build in Speed in mind with Dual Head i3200 for faster speed and accuracy, one for White and one for CMYK.
● Advanced technology that can print 5X times faster than any desktop system. 70 prints 11" x 11" per hour.
● Large print area that can print 12", 13", 17" and 24" inches Rolls.
● Uses Hoson boards for better quality.
● White Ink Circulation System is fully automatic to eliminate white ink separation, precipitation and clogging.
● Anti-coalition printhead sensors in both side to prevent any object from hitting the printheads.
● Heat element to heat the platen to help inks get dry better.
● Suction fan for the platen to help film stay flat.

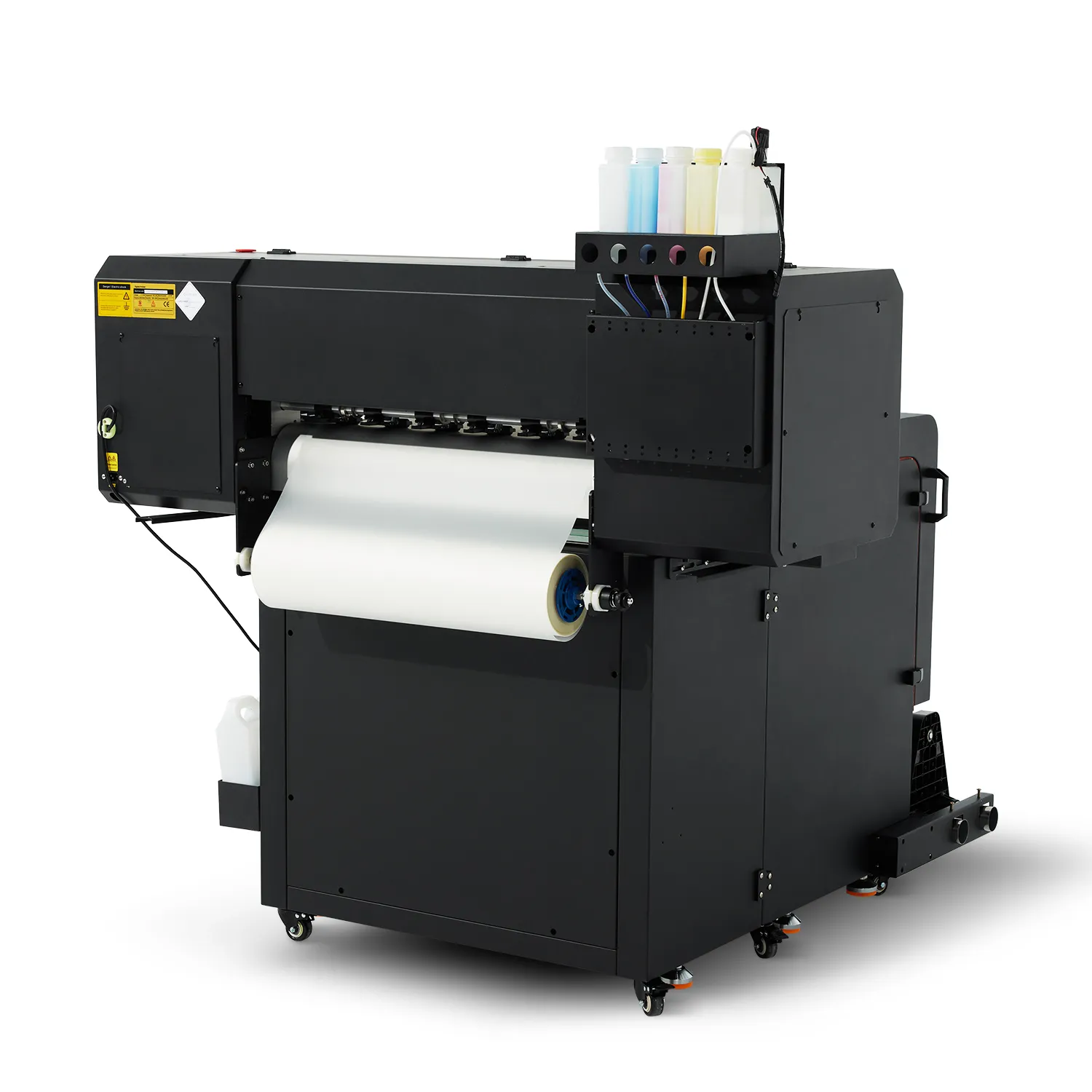

● Easy Roll Feeder on the back of the printer for easy feeding and attach it to a Knight A1™ Shaker & Oven.
● LED light to aid visibility in low light environments.

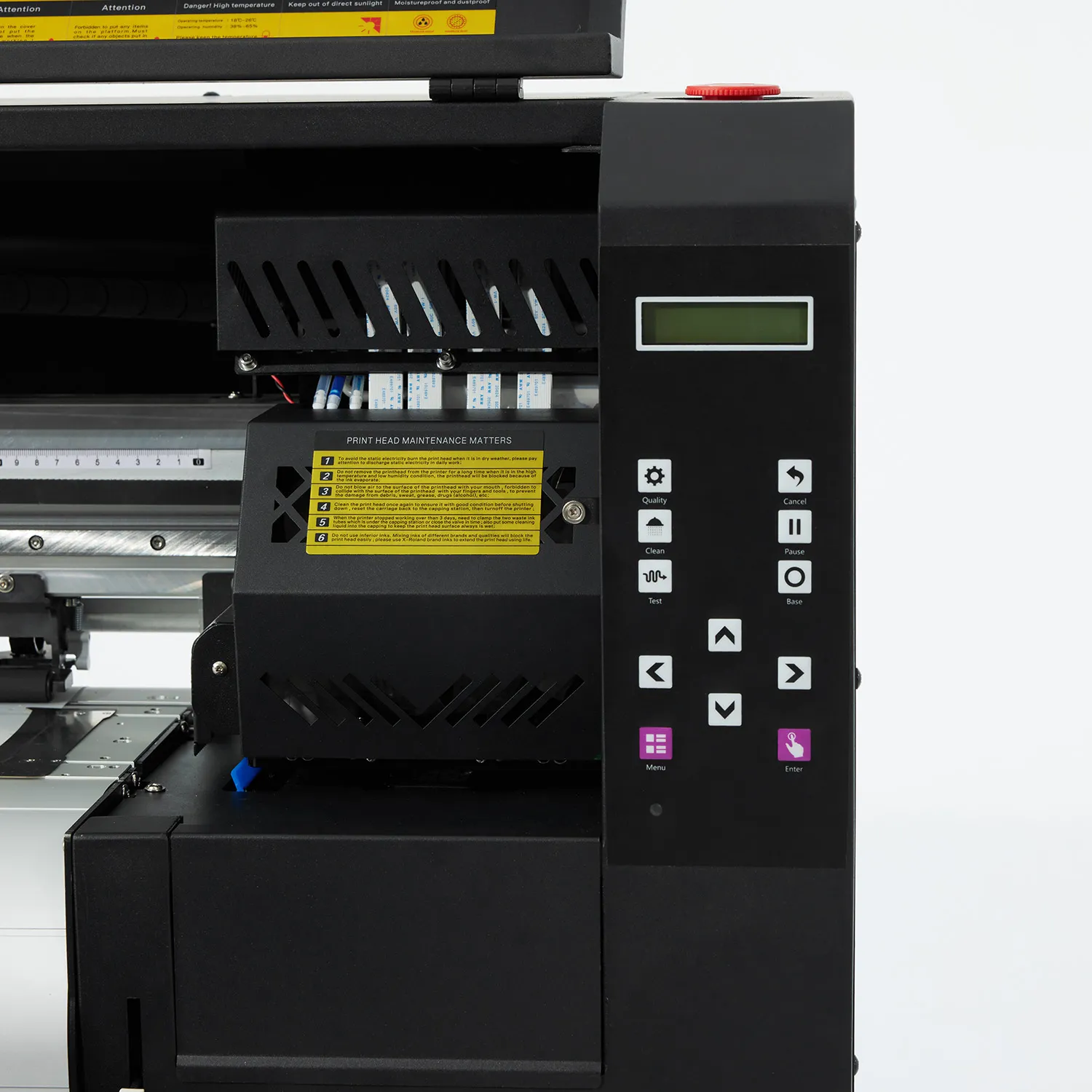

● Control Panel in front of the printer for easy access and management.
● Continuous Ink System with 500ml ink capacity for each color.

BENEFITS:

● Perfect for anyone or medium to big size businesses.
● Compatible with Fiery Digital Factory.
● Nice and compact AIO (All In One) design to save space that fit in 5 feet x 5 feet square space with solid and strong-designed interiors and exterior shells.

INCLUDED WITH YOUR PURCHASE:

● 1 Knight A1™ (24" inches) DTF Printer Dual Head AIO (All In One) - Direct To Film Printer (110v | 1500 watts | 10A)

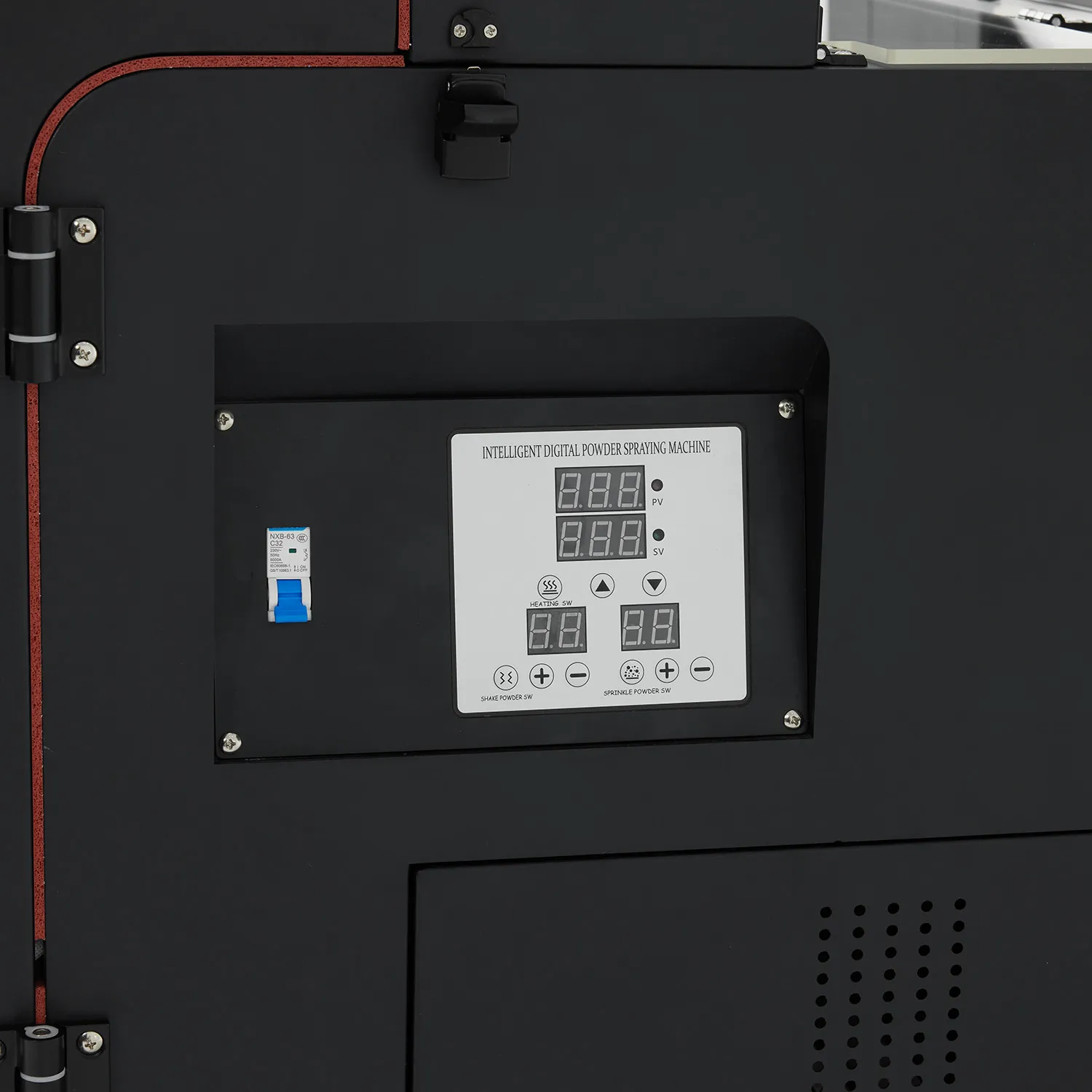

● Knight A1™ Shaker (24" inches) - Powder Shaker and Oven AIO (All In One) - (220v | 4500 watts | 20A)
● 1 Roll Feeder attachment
● 1 Power Cord for printer
● 1 Power Cord for shaker
● 1 Ethernet Cord (to connect to network card)
● 2 i3200 Printheads (will need to be installed and calibrated)
● 8 Printhead cables
● 8 Empty Dampers
● 12 Months Limited Warranty (please refer to the )
● BONUS: Fiery Digital Factory RIP Software (Cadlink)
● BONUS: PrintExp Software

WEIGHT AND DIMENSIONS:

Weight
● Printer weight 324 LB (146.96 kg)
● Shaker weight 260 LB (117.93 kg)

Dimensions without crate
● Printer (LxWxH): 48" x 20" x 20"
● Shaker (LxWxH): 43" x 32" x 37"

Dimensions with shipping crate
● Printer (LxWxH): 58” x 24” x 24"
● Shaker (LxWxH): 47” x 37” x 44"

REQUIREMENTS:

● 220v 20amps single dedicated circuit outlet for shaker.
● 110v 25amps single dedicated circuit outlet for printer.
● Climate control set to 72-75 degrees and 40-60% humidity.
● Vent to the outside with exhaust fan or using a fume extractor.

WHAT'S NOT INCLUDED:

●
●
●
● Computer or Laptop with Windows 10, or 11 with available USB port and card network port.
● Heat Press or Heat Gun to finish curing the powder.
● Fumes Extractor
●  (to keep the humidity above 40% in the print room) - is recommended.
