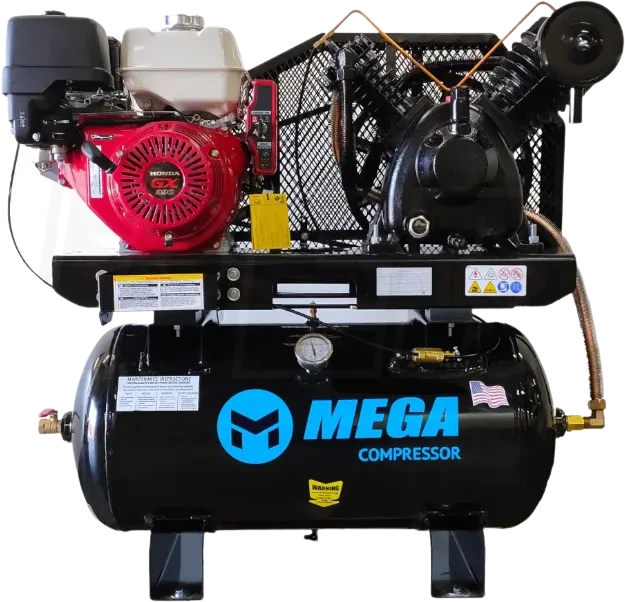

Two-stage truck mount air compressor
This two-stage truck mount air compressor is designed for superior performance, featuring a 13 horsepower Honda GX390 engine and a 30 gallon tank capacity. With an electric start and detachable top plate, it's easy to install and get running.
Features
-
MEGA Truck Mounted 2-Stage Compressor
-
Sturdy and reliable air pressure wherever you need it
-
Designed for automotive, light industrial & other demanding jobs
-
Detachable Top Plate
-
Conveniently remove mounted top plate when needed
-
Powerful 13-HP Honda GX390 Electric Start Engine
-
Reliable engine is easy to start; runs smooth & quiet
-
OHV design for increased efficiency and optimal power transfer
-
Electric and manual start for ease of operation (Battery & Cables Not Included)
-
Produces 19 CFM @ 175 PSI: Max 175 PSI
-
Plenty of power to run a wide range of air tools
-
Low 880 RPM for less wear and tear & longer life span
-
Cast Iron Splash Lubricated Pump
-
Thermally stable cast iron cylinder body
-
Aluminium head and machine cast iron valve plate
-
Aluminium pump head helps dissipate heat for longer pump life
-
One-Piece Cast Iron Crankcase
-
"V" Design minimise vibration and improves cooling
-
Durable automotive-style ball bearing and stainless-steel reed valves
-
Easy Viewing Oil Sight Glass
-
Simply check compressors pump oil level
-
Conveniently accessible oil fill for fast maintenance
-
30-Gallon ASME Tank w/ Pressure Gauge
-
Sturdy metal belt guard protects the belt and the user
-
Manual tank drain for quick tank draining to prevent rust
-
1-Year Limited Warranty
-
Protects your investment
-
Shipped with 100% full synthetic air compressor oil
Specifications
| Electronic Drain Valve | No |
|---|---|
| Tank Orientation | Horizontal |
| Regulator | No |
| Pressure Gauge | Yes |
| Air Dryer | No |
| Weight | 500 Pounds |
| CA (CARB) Compliant | No |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Product Length | 28 in. |
| Product Width | 48 in. |
| Product Height | 46 in. |
| Power Type | Gas |
| HP | 13 |
| CC | 389 |
| Engine Brand | Honda GX390 |
| Starting System | 12-Volt Key Start w/ Recoil |
| Engine Low Oil Shut-off | Yes |
| CFM | 19 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
| Tank Size | 30 gallon |
| Tank Outlet | 3/4 in. |
Package Including
1. Two-Stage Truck Mount Air Compressor
2. Manual
