Product Details

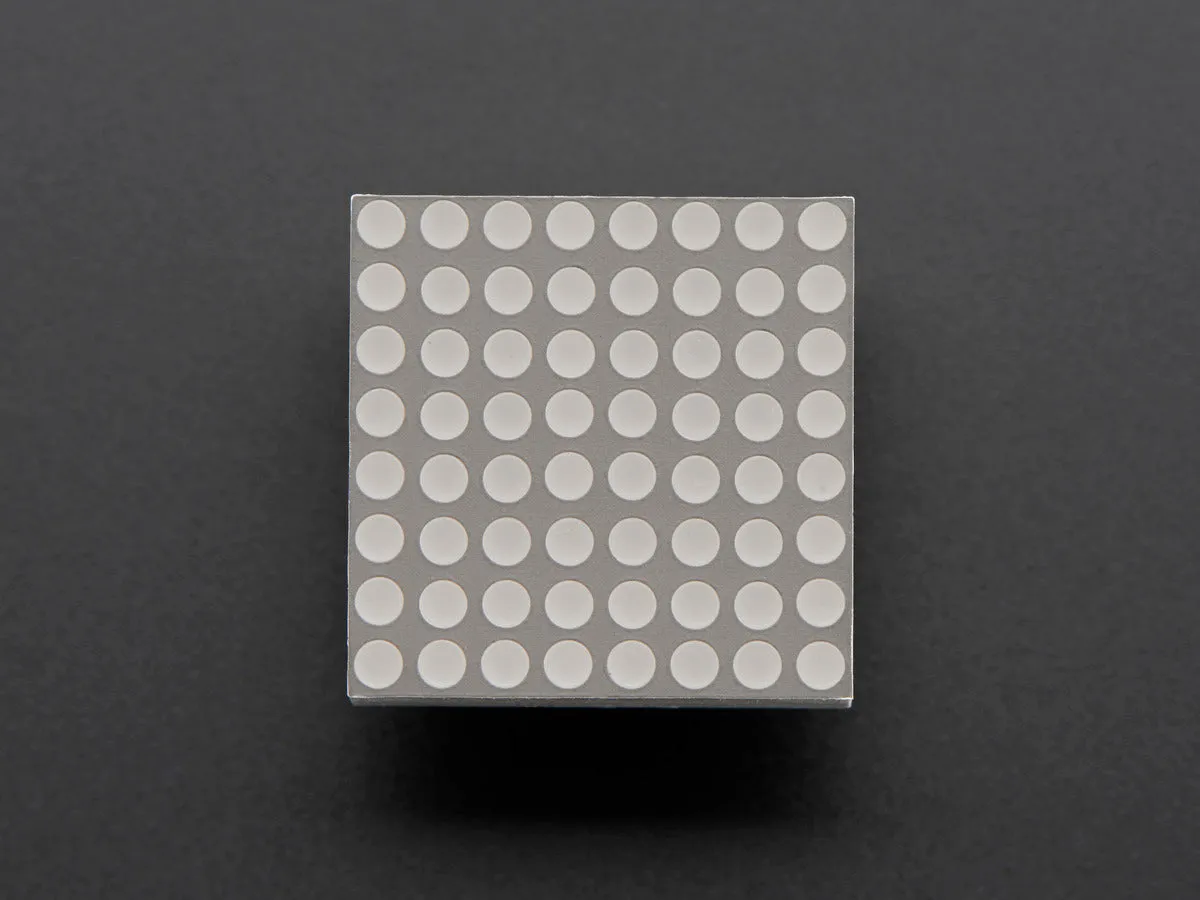

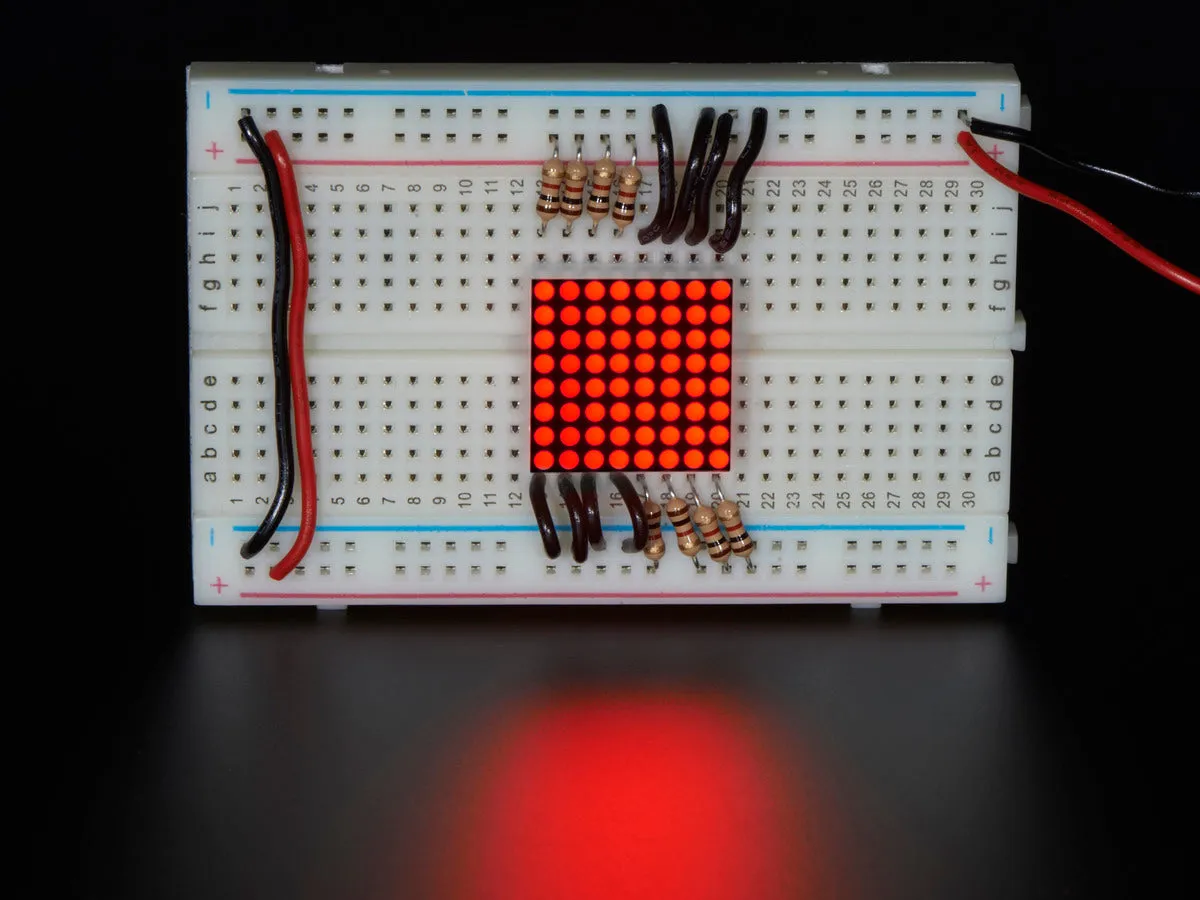

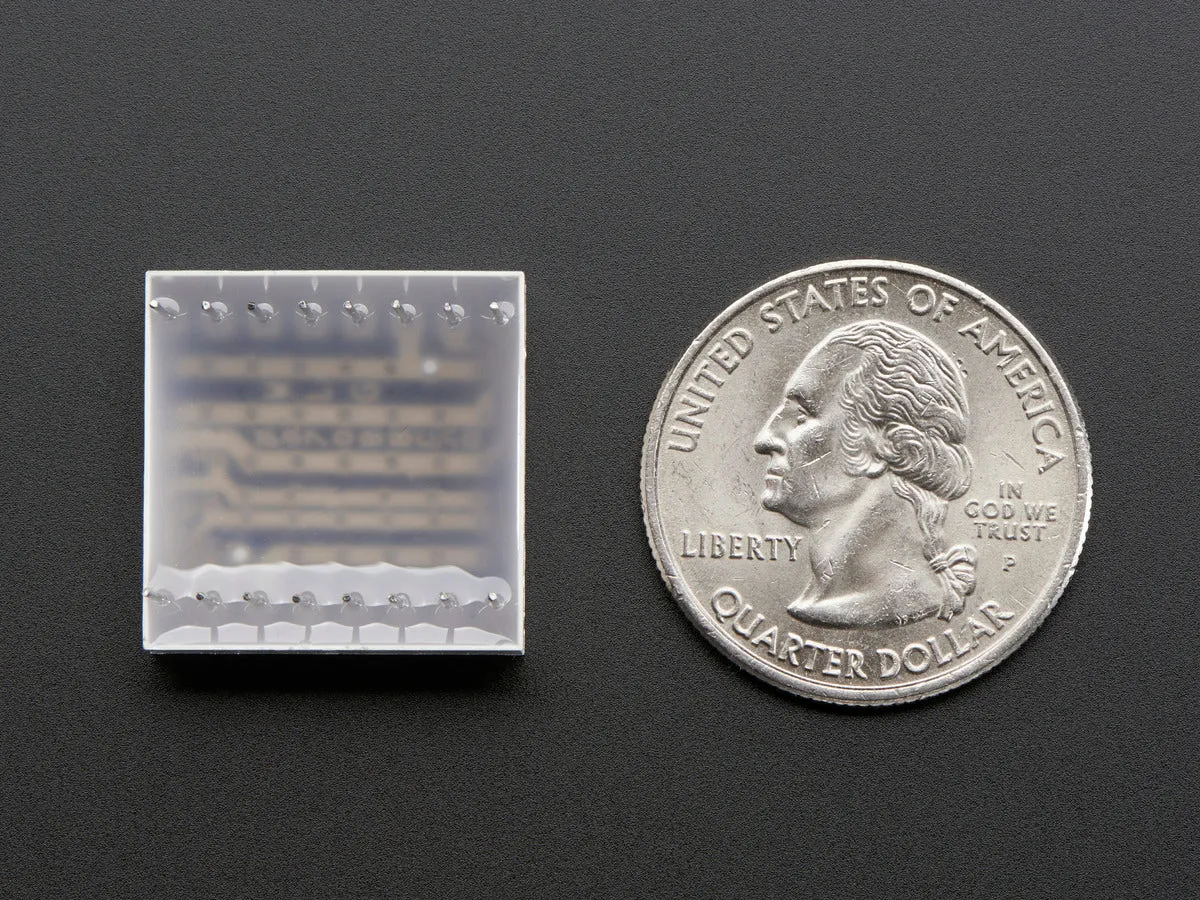

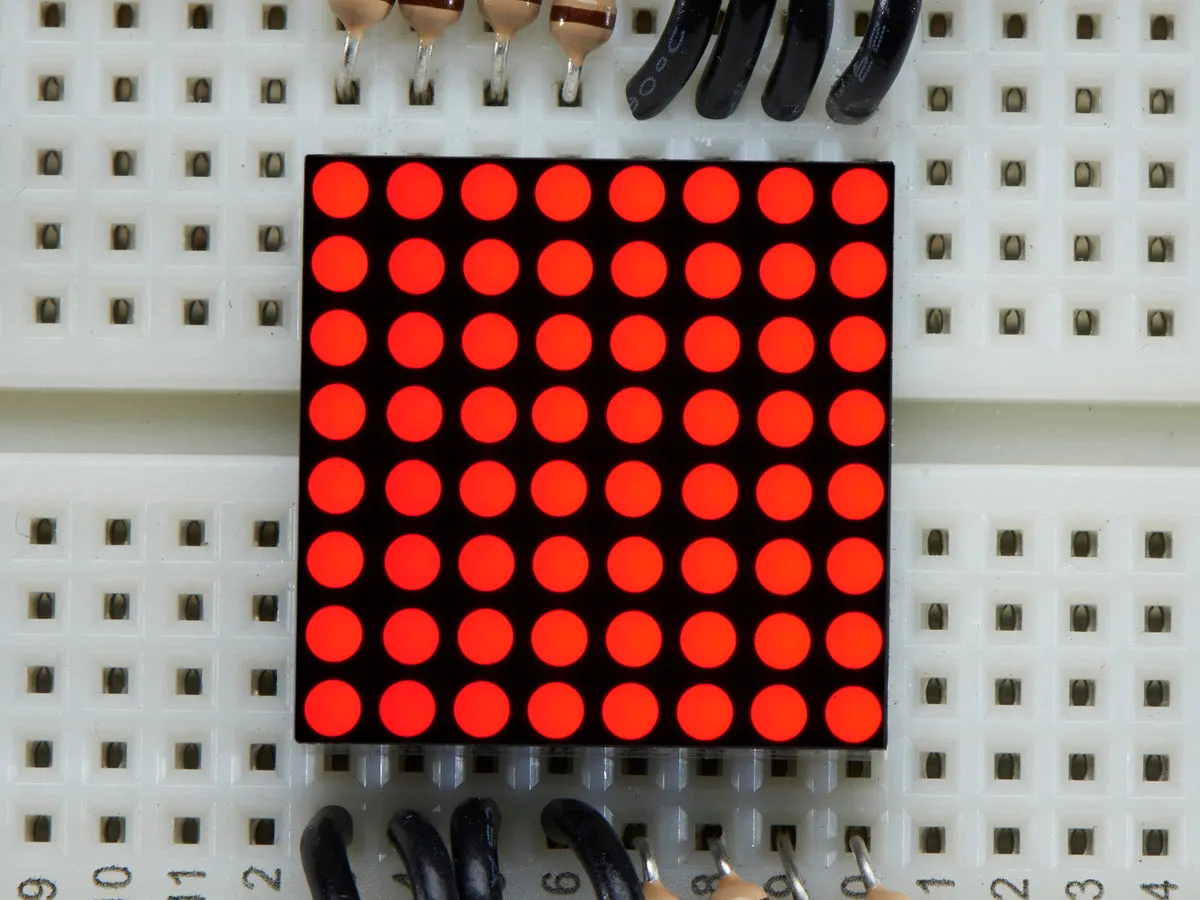

You will squeak with delight when you hold this adorable miniature LED 8x8 matrix. 0.8" square, it's got everything a big LED matrix has, but bite-sized! There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space to wire it up

Since the display is in a grid, you'll need to 1:8 multiplex control it. We suggest either using a and (using the 74HC' to control the 8 anodes at once and then using the TPIC' to drive one cathode at a time) or just using a single which will do the multiplexing work for you.



Technical Details

  • - We currently have LuckyLight as the supplier for this matrix. Previously we carried BetLux.
  • This is a Common Cathode LED Matrix
  • Weight: 2.75g


    Miniature 8x8 Red LED Matrix
    • Localstock
    • Overseasstock

    $ 85.92

    $ 66.09
