Product Details
＋

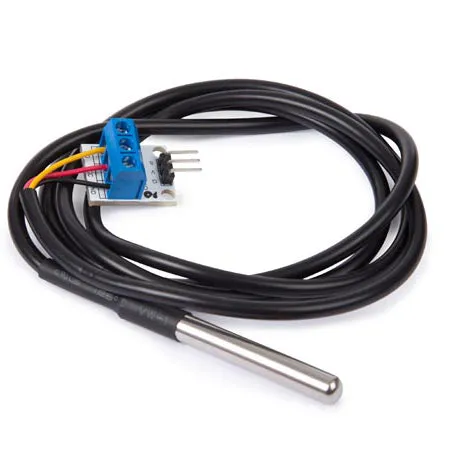

This digital thermometer provides 9 to 12-bit (configurable) temperature readings, and comes with a handy three pin adaptor for connecting it to an Arduino or breadboard.
Features
- DS18B20 specs: unique 1-wire interface requires only one port pin for communication
- multidrop capability simplifies distributed temperature sensing applications
- requires no external components
- can be powered from data line, power supply range is 3.0 V to 5.5 V
- zero standby power required
- measures temperatures from -55°C to 125°C (Fahrenheit equivalent -67°F to 257°F)
- ± 0.5°C accuracy from -10°C to 85°C
- thermometer resolution is programmable from 9 to 12 bits
- converts 12-bit temperature to digital word in 750 ms (max.)
- user-definable, non-volatile temperature alarm settings
- alarm search command identifies and addresses devices whose temperature is outside of programmed limits (temperature alarm condition)
- 3-wire adaptor for Arduino included
Specifications
- dimensions stainless steel tube:
- diameter: 6 mm
- length: 30 mm
- dimensions cable:
- diameter: 4 mm
- length: 36" (91 cm)
- connections:
- red: 3-5 V
- black: ground
- yellow: data
