Ubiquiti Unifi Switch 24 PoE USW-24-PoE
(1 Year Manufacture Local Warranty In Singapore)
Layer 2, PoE switch with (24) GbE RJ45 ports, including (16) 802.3at PoE ports,
and (2) 1G SFP ports.

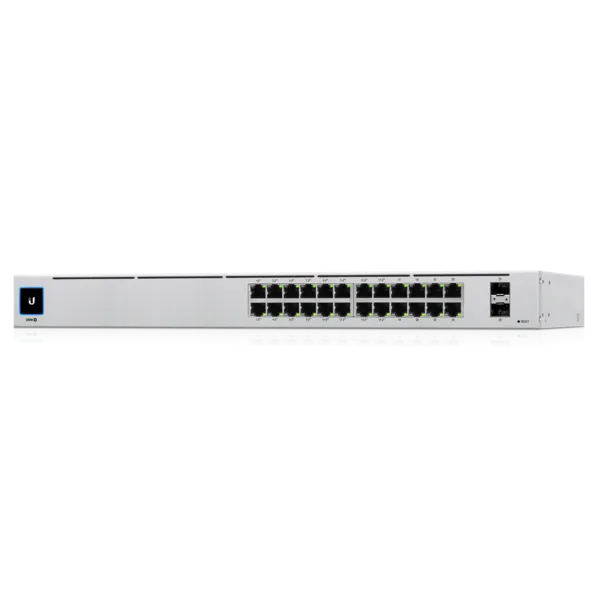

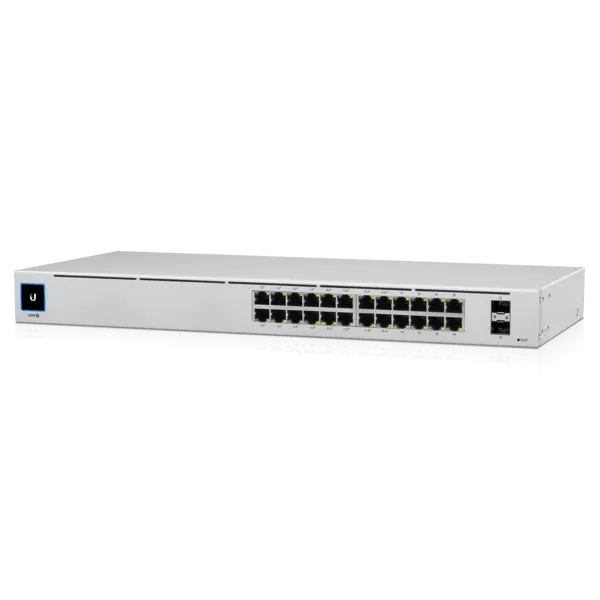

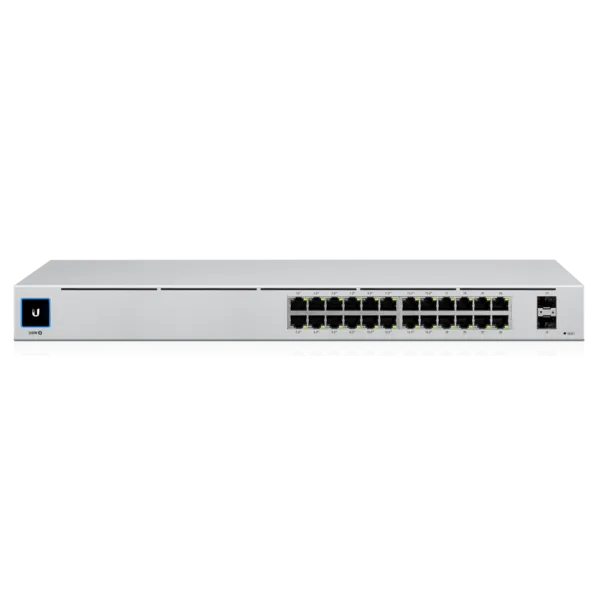

The Switch 24 PoE (USW 24 PoE) is a fully managed switch with (24) GbE RJ45 ports, including (16) GbE, 802.3at PoE ports, and (2) 1G SFP ports. The versatile USW 24 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

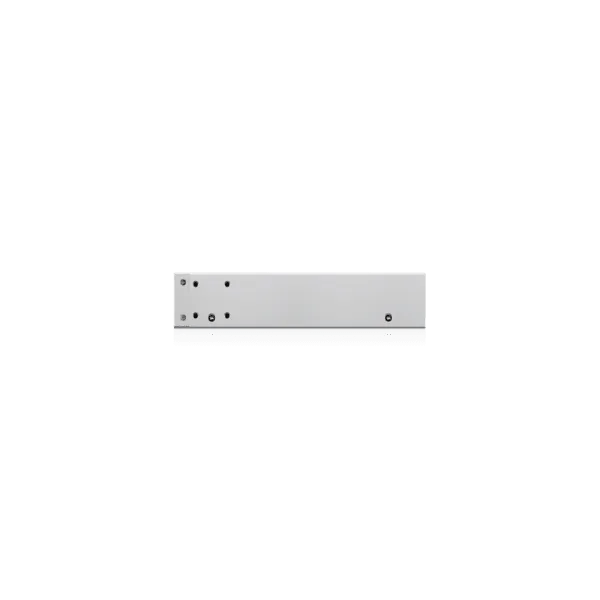

Additionally, with its 7.9" depth, it's easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
- (1) 1.3" LCM color touchscreen with AR switch management
- (16) GbE, 802.3at PoE RJ45 ports
- (8) GbE RJ45 ports
- (2) 1G SFP ports
- 95W total PoE supply
- Fanless, silent cooling
Managed with the UniFi Network application: Version 5.11.27 and later
Video Review
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72") |
| Weight With Brackets Without Brackets |
3.09 kg (6.81 lb) 3.00 kg (6.61 lb) |
| Interfaces Networking Management |
(24) 10/100/1000 RJ45 Ports (2) 1G SFP Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |

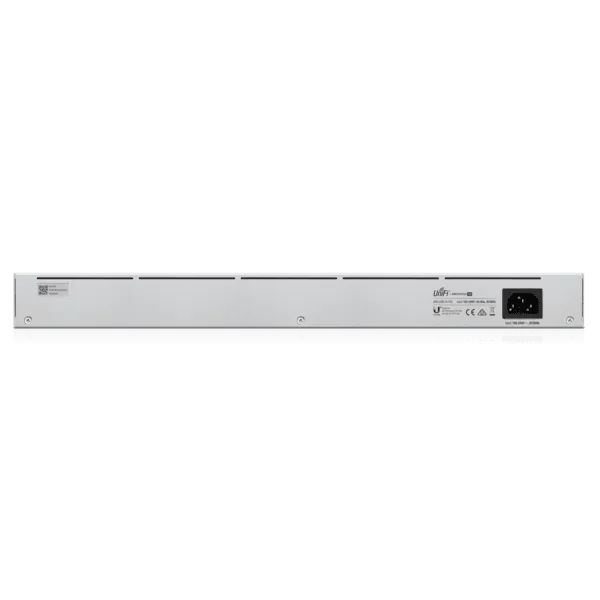

| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 120W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 25W |
| LEDs RJ45 Data Ports SFP Data Ports |
PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 95W |
| PoE Interfaces Ports 1-16 | POE IEEE 802.3af/at (pins 1, 2 ; 3, 6-) |
| Max. PoE Wattage per Port by PSE 802.3at |
32W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at Mode | 50-57V |
