Product Details
＋

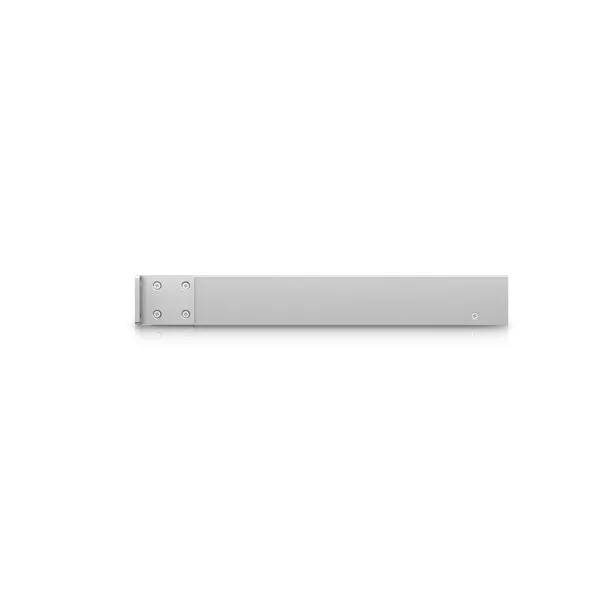

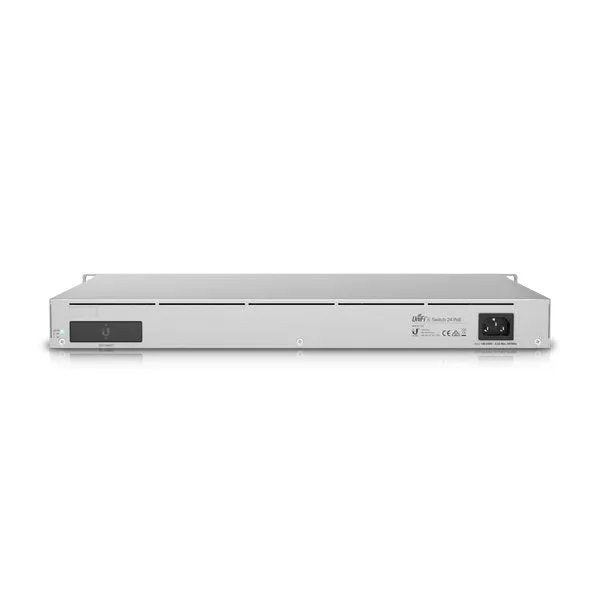

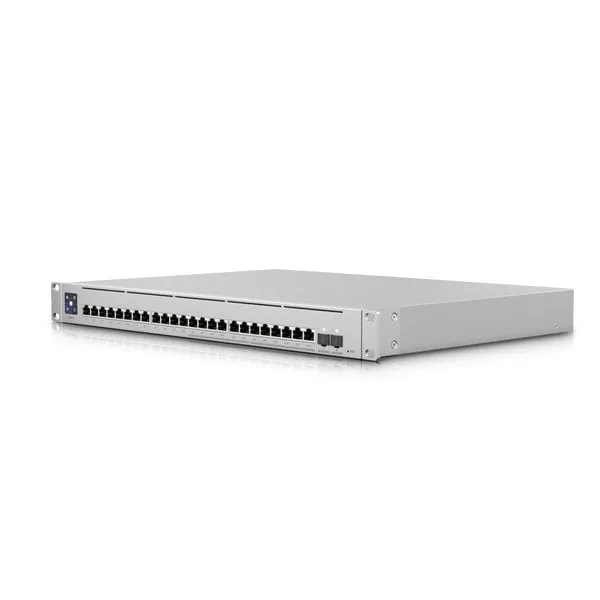

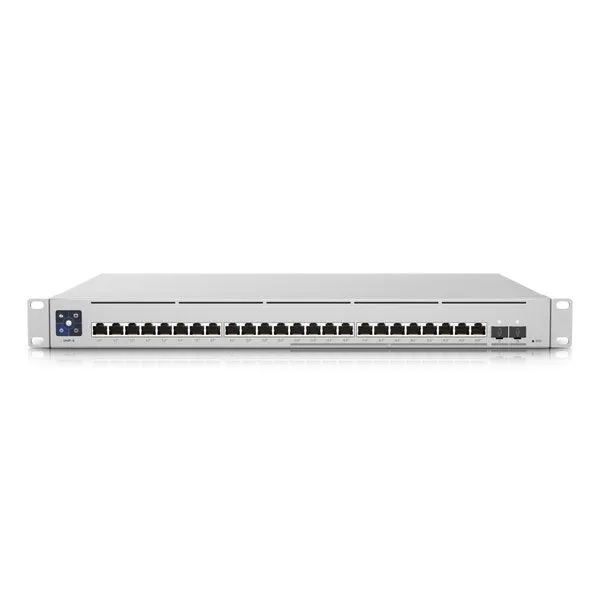

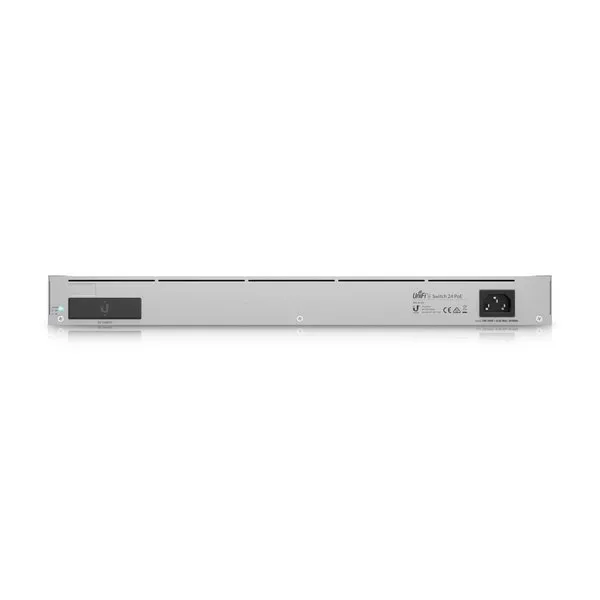

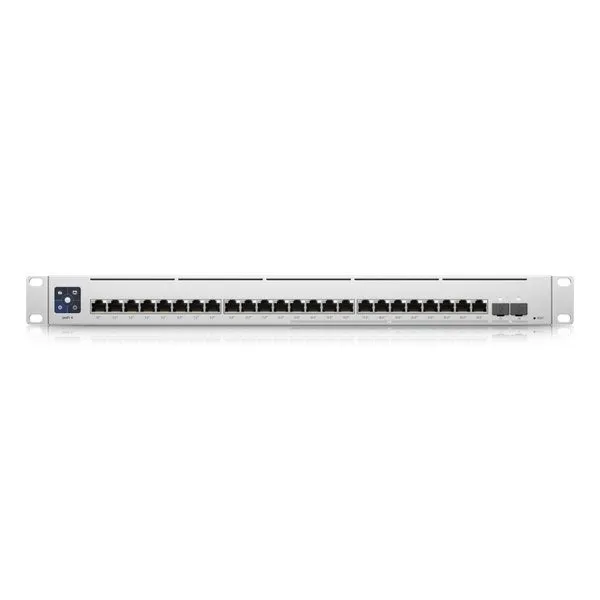

Ubiquiti Unifi Switch Enterprise 24 PoE
USW-Enterprise-24-PoE (1 Year Manufacture Local Warranty In Singapore)
Layer 3, PoE switch with
(12) 2.5GbE, PoE RJ45 ports,
(12) GbE, PoE RJ45 ports, and
(2) 10G SFP ports.
The Switch Enterprise 24 PoE (USW Enterprise 24 PoE) is a fully managed, Layer 3 switch with (12) 2.5GbE, PoE RJ45 ports, (12) GbE, PoE RJ45 ports, (2) 10G SFP ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3" LCM colour touchscreen that concisely displays key system and connection insights.
The USW Enterprise 24 PoE also offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System ( sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
- (1) 1.3" LCM color touchscreen with AR switch management
- (12) GbE, PoE RJ45 ports
- (12) 2.5GbE, PoE RJ45 ports
- (2) 10G SFP ports
- (1) USP RPS DC input
- 400W total PoE supply
- Layer 3 switching features
- Single-row RJ45 port layout for easy patch panel cable management
Managed with the UniFi Network application: Version 5.14.12 and later
Video Review
Product Specifications:
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| Weight | Without Mount: 5.11 kg (11.27 lb) With Mount: 5.2 kg (11.46 lb) |
| Enclosure Materials | SGCC Steel |
| Mount Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Throughput | 62 Gbps |
| Switching Capacity | 124 Gbps |
| Forwarding Rate | 92.25 Mpps |
| Max. Power Consumption | 550W |
| Power Method | (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A |
| Power Supply | AC/DC, Internal, 550W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (12) 10/100/1000 Mbps RJ45 Ethernet (12) 100/1000/2500 Mbps RJ45 Ethernet |
| SFP Interfaces | (2) 1/10G SFP |
| PoE Interfaces | (24) PoE/PoE (Pins 1, 2 ; 3, 6-) |
| Max. PoE Wattage per Port by PSE | 34.2W |
| Voltage Range PoE Mode | 44 to 57V |
| Voltage Range PoE Mode | 50 to 57V |
| Services | SMB Layer 3 PoE Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 95% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | White: Link or Activity |
| SFP | White: Link or Activity |
