Product Details
＋

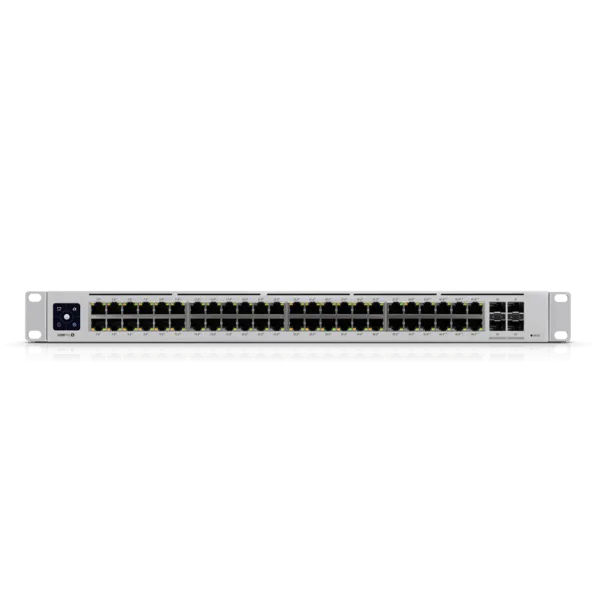

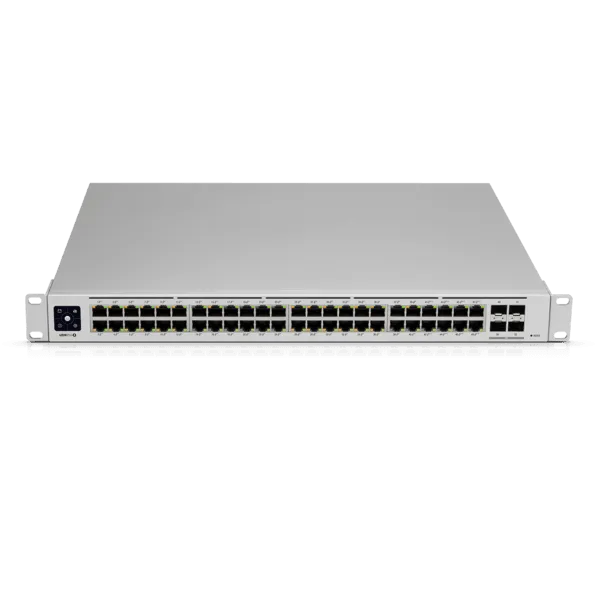

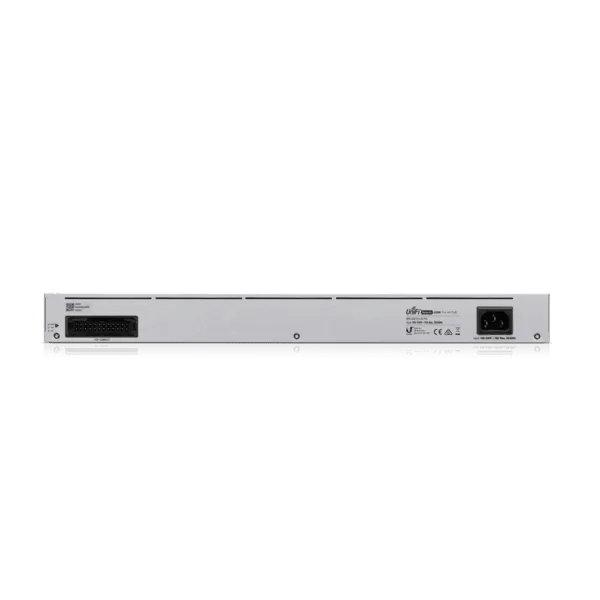

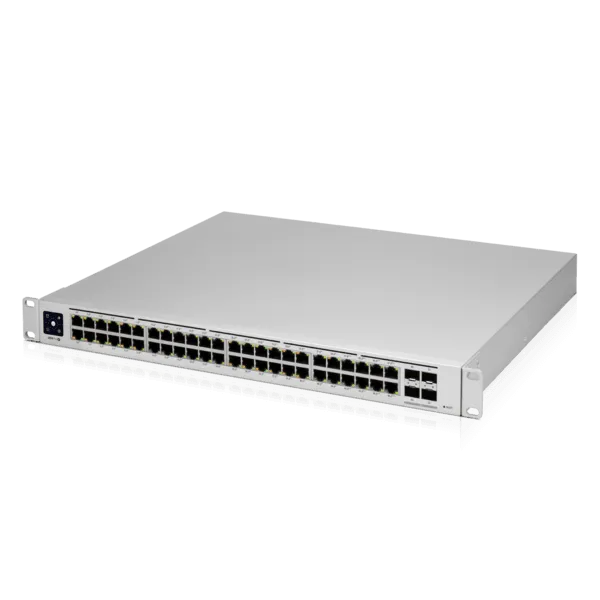

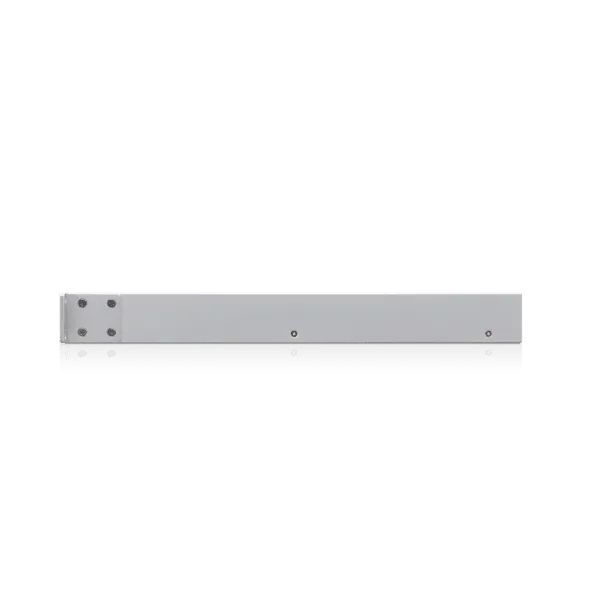

Ubiquiti Unifi Switch Pro 48 PoE USW-Pro-48-PoE (1 Year Manufacture Local Warranty In Singapore)
Layer 3, PoE switch with
(48) GbE RJ45 ports, including
(40) 802.3at PoE ports and
(8) 802.3bt PoE ports, and
(4) 10G SFP ports.
The Switch Pro 48 PoE (USW Pro 48 PoE) is a fully managed switch with (40) GbE, 802.3at PoE RJ45 ports, (8) GbE, 802.3bt PoE RJ45 ports, and (4) 10G SFP ports. The USW Pro 48 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 48 PoE is the ideal access layer switch for any UniFi system. It combines up to 600W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
- (1) 1.3" LCM colour touchscreen with AR switch management
- (40) GbE, 802.3at PoE RJ45 ports
- (8) GbE, 802.3bt PoE RJ45 ports
- (4) 10G SFP ports
- (1) USP RPS DC input
- 600W total PoE supply
- Near-silent cooling
- Layer 3 switching features
Managed with the UniFi Network application: Version 5.10.5 and later
Video Review
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72") |
| Weight With Brackets |
6.25 kg (13.78 lb) 6.34 kg (13.98 lb) |
| Interfaces Networking Management |
(48) 10/100/1000 RJ45 Ports (4) 1/10G SFP Ethernet Ports Ethernet In-Band |
| Total Non‑Blocking Throughput | 88 Gbps |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.944 Mpps |
| Power Method Universal Input USP RPS DC Input |
100-240VAC/50-60 Hz 52VDC, 11.54A; 11.5VDC, 5.22A |
| Power Supply | AC/DC, Internal, 120W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 60W |
| LEDs System RJ45 Data Ports SFP Data Ports |
Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 600W |
| PoE Interfaces Ports 1-40 Ports 41-48 |
POE IEEE 802.3af/at, (pins 1, 2 ; 3, 6-) 60W PoE IEEE 802.3bt, (Pair A 1, 2 ; 3, 6-) (Pair B 4 , 5 ; 7, 8-) |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt |
32W 64W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at Mode | 50-57V |
